191548.00 LEESON 1/2HP SST Single Phase Pedestal Fan Motor A6P11VZ3A

Electric Motors

Single Phase Electric Motors

LEESON Motors Single Phase

LEESON Single Phase Pedestal Fan Motors

LEESON Single Phase SST Pedestal Fan Motors

1/2HP LEESON 1145RPM 48YZ TEAO 1PH SST PEDESTAL FAN MOTOR 191548.00

Part Number:

191548.00

Model/Spec Number:

A6P11VZ3A

Manufacturer:

Regal Rexnord Commercial

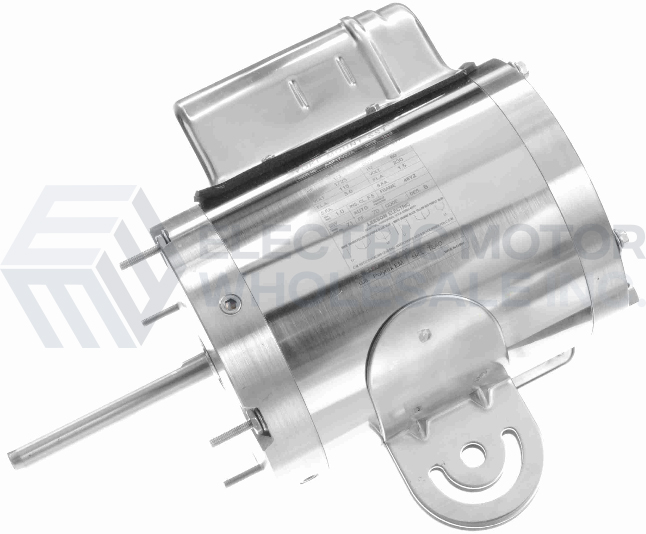

191548.00 LEESON 1/2HP SST Single Phase Pedestal Fan Motor is designed for use where the fan is mounted directly to the motor shaft and is built with all stainless steel external components to prevent corrosion.

Ordering Notes

This part is non-returnable. Use the Data-Sheet provided to confirm product specs.

MSRP: $2,094.00

Regular Price

USD

721

QTY

Shipping Details

Weight:

30 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

UPC:

691720052570

Technical Details

Specifications

Application:	Washdown Pedestal Fan
Output HP:	1/2
Output KW:	0.37
Output RPM:	1145
Frame NEMA:	48YZ
Mount NEMA:	Yoke Mount
Enclosure NEMA:	TEAO
Enclosure IEC:	IP55
Voltage:	115/230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

LEESON SST Single Phase Pedestal Fan Motor are designed for use where the fan is mounted directly to the motor shaft and is built with all stainless steel external components to prevent corrosion.

FEATURES:

Durable stainless steel frame
Anti-corrosion coating applied to interior components
1/2" Stainless steel output shaft with seal and flat for ease of mounting
10-32 extended thru-bolts
Permanent split capacitor type design
Automatic thermal overload protection
Inverter duty IRIS insulation system
Repositionable drain plugs for all angle mounting
Double sealed bearings
Laser etched "full-fact" nameplate
BISSC Certified for the baking industry
UL Recognized and CSA Certified for the US and Canada
