10FT-LB LEESON 56/143-5T NEMA2 BRAKE 575VAC KIT 175179.00

10FT-LB LEESON 56/143-5T NEMA2 BRAKE 575VAC KIT 175179.00

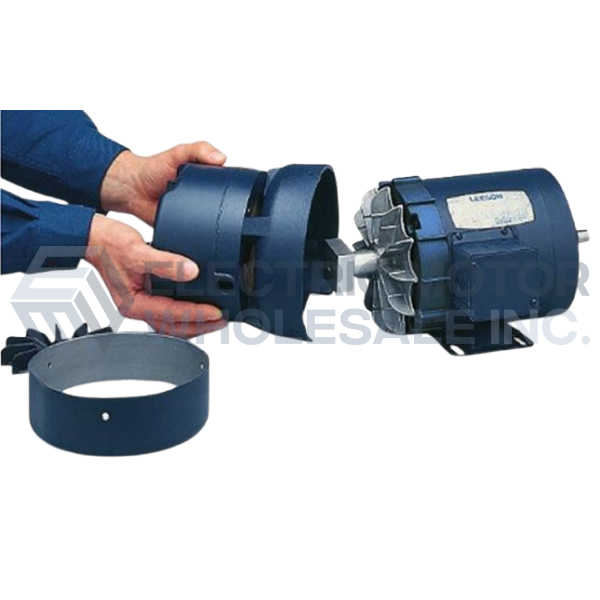

Brake Kit.jpg
Picture is for reference only.

Part Number:

175179.00

Manufacturer:

Leeson Obsolete
175179.00 LEESON 10FT-LB Brake is a kit of components to convert 56/143-5T frame stock TEFC motor to fail-safe brake motors.

Item Discontinued

Click below to request an agent review potential options.

Weight:

12 lbs

Dimensions:

13 x 14 x 13 inches

HS Code:

8503.00.9520

Technical Details

Static Torque Lb.-ft.:

10

Coil Size:

#4

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Coil Voltage AC:

575//480

Coil Hz:

60/50

Release:

Turn Release

Endplate Material:

Aluminum

Mount Orientation:

Horizontal

Application:

General Purpose
