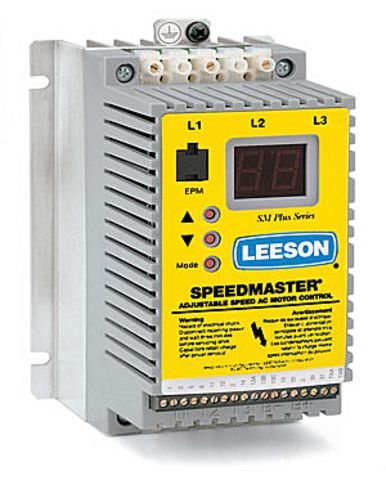

LEESON 5HP SM VECTOR VFD 200-240V 3PH INPUT 174010

Other features include

• The SM-Vector drive is designed for operation with vector duty rated induction motors rated for 200,230,400,460, or 590VAC from 0-240Hz.
• IP20 enclosure with finger safe terminals
• Easy setup and operation - Program the SM-Vector drive one of the four different ways:
  • From the front of the drive
  • The optional remote keypad
  • A PC using the TechLink Software
  • The EPM Programmer
• Modes of operation:
  • Constant Torque V/Hz
  • Variable Torque V/Hz
  • Sensorless Vector - speed mode
  • Sensorless Vector - torque mode
• Auto tuning determines key performance values based on the motor and installation variables. Required for operation in vector modes, but can be used to enhance performance in V/Hz mode.
• The SM-Vector drive is an approved thermal overload protection devise for single motor applications.
• 18 isolated terminals provide 5 logic inputs and 2 logic outputs
• Two reference inputs allow for 4-20mA and either 1-10V or bipolar -10 to =10v
• Two analog outputs indicate speed and load.
• Two wire RS485 serial communication.
• Dynamic braking and remote keypad kits are available.
