3HP LEESON 1770RPM 182T TEFC 3PH WATTSAVER MOTOR 171320.60

3HP LEESON 1770RPM 182T TEFC 3PH WATTSAVER MOTOR 171320.60

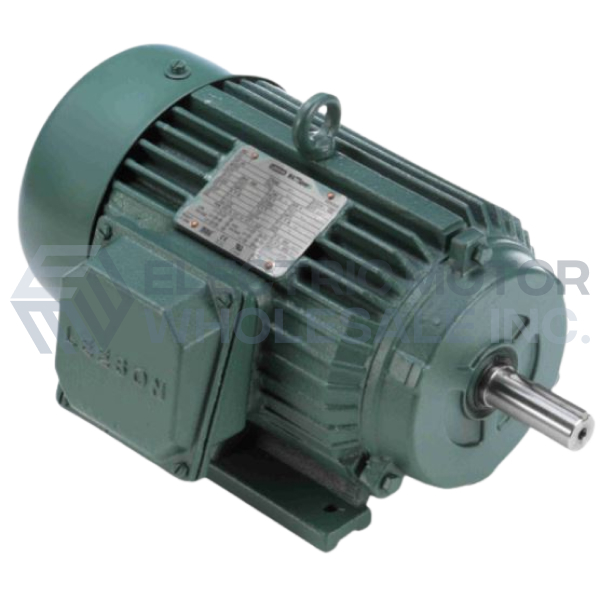

Picture is for reference only.

Part Number:

171320.60

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C182T17FB42
171320.60 LEESON 3HP WATTSAVER motor general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

110 lbs

Dimensions:

24 x 24 x 24 inches

HS Code:

8501.52.4000

UPC:

691720028520

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

1770

Frame Size NEMA:

182T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Product Information Packet

LEESON WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • Cast Iron frame
  • 1-1/8" shaft output diameter
  • 1.15 Service Factor
  • Class F insulation
  • Inverter rated
  • Continuous duty
  • Dynamically balanced rotors
  • UL recognized and CSA certified

APPLICATIONS: pumps, compressors, blowers, fans and other standard industrial applications.
