15HP LEESON 1775RPM 254T TEFC 3PH WATTSAVER MOTOR 170066.60

15HP LEESON 1775RPM 254T TEFC 3PH WATTSAVER MOTOR 170066.60

Picture is for reference only.

Part Number:

170066.60

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C254T17FB10C
170066.60 LEESON 15HP WATTSAVER motor are general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

295 lbs

Dimensions:

23 x 32 x 23 inches

HS Code:

8501.52.4000

UPC:

691720028117

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

15

Output KW:

11.2

Output RPM:

1760

Frame Size NEMA:

254T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Product Information Packet

Obsolete-C254T17FB10C.pdf

LEESON WATTSAVER motors are general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

Volts208-230 Volts460 Volts190/380
FL Amps39-37 FL Amps18.5 FL Amps30.5/15.3
SF Amps44-42 SF Amps21 SF Amps34.5/17.3
RPM1800 Hertz60/50
HP15 DutyCONTINUOUS TypeTF
KW11.2 SF1.15 Phase3
Frame254T DesignB KVA CodeH
Ambient40 ProtectionNOT Therm.Prot.
Insulation ClassF Eff(75%)  PF82.5
Eff(100%)92.4 CSAY Bearing OPE6308
ULY CEY Bearing PE6309
CC NumberCC005A Inverter Type  Speed RangeNONE
LOad Type
Motor Wt.290 LB EnclosureTEFC LubricationPOLYREX EM
Nameplate081023 MountingRIGID RotationREV
Shaft Diam.  Cust Part No.  Packaging307997.99
   WindingT12904005 Carton LabelINDIVIDUAL
   Group1 Iris
PaintBLUE (ENAMEL) Hazardous LocationNONE Test Card
Image for 15HP MARATHON 1772RPM 254T TEFC 3PH GLOBETROTTER MOTOR GT1022A

15HP MARATHON 1772RPM 254T TEFC 3PH GLOBETROTTER MOTOR GT1022A

MSRP: $2,214.00

Regular Price

$

1,527

66

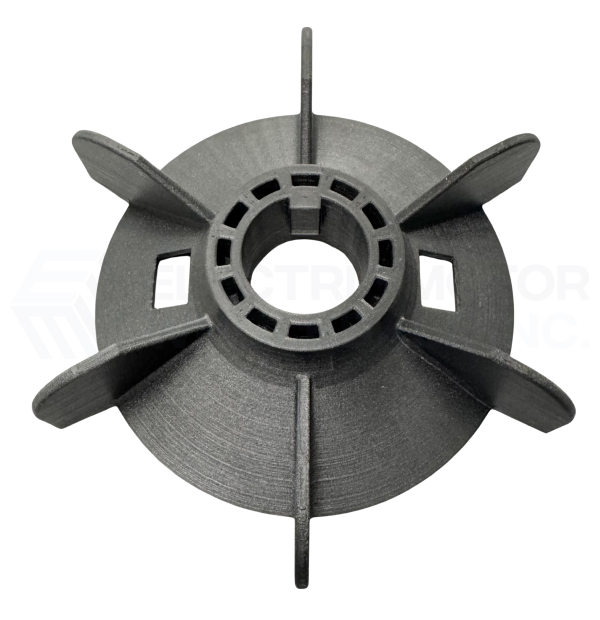

Image for E164042.60 LEESON EXTERNAL COOLING FAN
