25HP LEESON 1190RPM 324T TEFC 3PH WATTSAVER MOTOR 170003.60

25HP LEESON 1190RPM 324T TEFC 3PH WATTSAVER MOTOR 170003.60

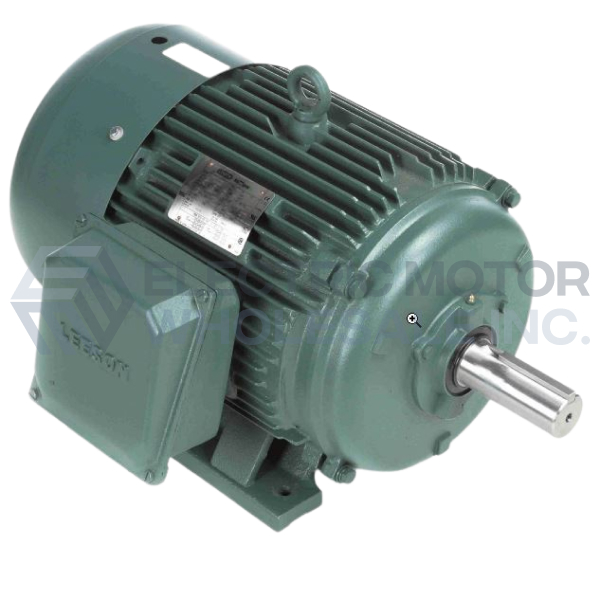

Picture is for reference only.

Part Number:

170003.60

Model/Spec Number:

C324T11FB3

Manufacturer:

Leeson Obsolete
170003.60 LEESON 25HP WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

557 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.0000

UPC:

691720154861

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

25

Output KW:

18.7

Output RPM:

1190

Frame Size NEMA:

324T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460
