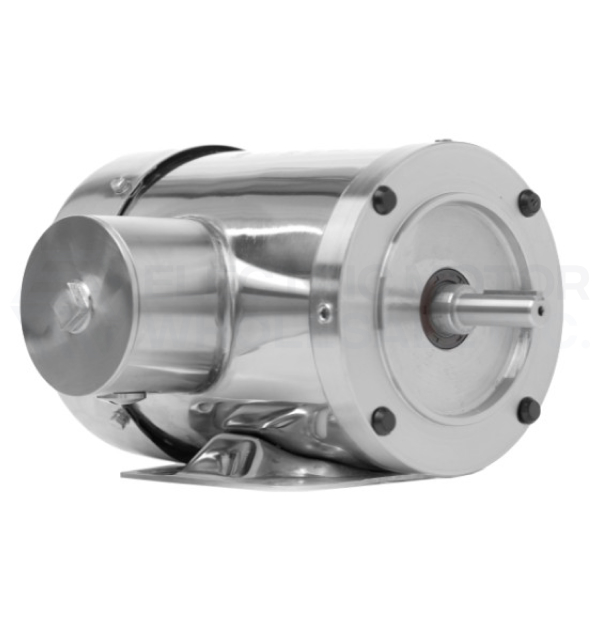

5HP LEESON 3520RPM 184TC TEFC 3PH ULTRA WASHDOWN MOTOR 132648.00

LEESON Three Phase Extreme Duck Ultra Motor built to withstand the extreme washdown and sanitation requirements of the food processing, pharmaceutical, packaging, and bevarage industries. 300-Series Stainless Steel used on all exterior surfaces gives ideal protection against severe chemical-processing applications and frequent washdown processes using salt water, nitric acids and solvents.

FEATURES:

• 1 1/8" Keyed output shaft
• Three year warranty
• All exterior components are 300-Series stainless steel
• IRIS inverter rated insulation system provides extra protection and long life
• Unique “Q-CAR” rotor/cartridge seal system designed for quick access to the interior of the motor
• "HS2" Hydro-sealed system eliminates the need for drain plugs and breathers
• Minimal exterior hardware which may trap contaminants
• Vacuum assisted internal epoxy encapsulation reduces interior air pockets where condensation can occur
• Full fact nameplate etched in frame
• Double sealed ball bearings
• Two piece Viton shaft seal with flinger
• Color-coded, non-wicking lead wires with chemical and abrasion resistant markers

Standards and Approvals

• Motors are UL component recognized – file number E57948, guide number PRGY2
• CSA Energy Efficiency Verification Program, report number EEV 78720-1
• Construction is CSA Certified for safety, report number LR33543
• Listed under BISSC authorization number 769
