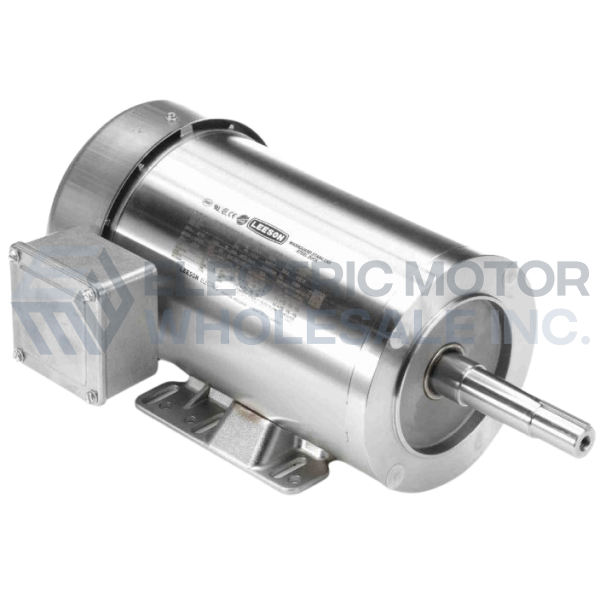

2HP LEESON 1745RPM 145JM TEFC 3PH STAINLESS WASHDOWN PUMP MOTOR 122211.00

LEESON Three Phase Stainless JM Pump Motor for washdown applications requiring a standard JM pump shaft. Ideal for use in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye.

Features:

• NEMA Premium efficiency rating with a three year warranty
• All exterior components are 300-series stainless steel.
• Heavy duty 12G stamped base
• Nothing on the motor's exterior is painted or coated in any way.
• Interior coatings applied to rotor and stator protect against corrosion.
• All sealing components are Viton® for superior chemical resistance.
• Buna-N gaskets and Viton shaft seals (both ends for TEFC motors)
• IRIS Inverter rated insulation system
• Full fact nameplate is laser etched on the motor frame - no separately attached nameplate to trap dirt or contaminants.
• Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life.
• Four condensate drains in each endshield
• Moisture resisitant sealant between frame and endshields excludes water
• Split conduit box design with rubber gasket for better sealing

Standards and Approvals:

• Single and three phase motors are UL component recognized - file number E57948, guide number PRGY2.
• CSA Energy Efficiency Verification Program, report number EEV 78720-1.
• Construction is CSA Certified for safety report LR33543
