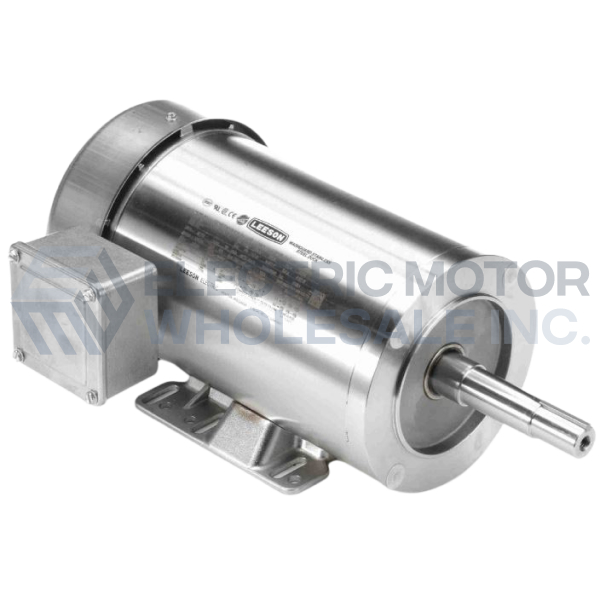

1HP LEESON 1725RPM 143JM TEFC 3PH STAINLESS PUMP MOTOR 122208.00

1HP LEESON 1725RPM 143JM TEFC 3PH STAINLESS PUMP MOTOR 122208.00


Part Number:

122208.00

Model/Spec Number:

CZ143T17WK22

Manufacturer:

Leeson Obsolete
122208.00 LEESON 1HP Three Phase Stainless JM Pump Motor for washdown applications requiring a standard JM pump shaft. Ideal for use in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye.

Item Discontinued

Click below to request an agent review potential options.

Weight:

35 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.52.4000

UPC:

691720053102

Technical Details

Brand:

Leeson

Application:

Washdown Stainless

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame Size NEMA:

143JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460

Product Information Packet
