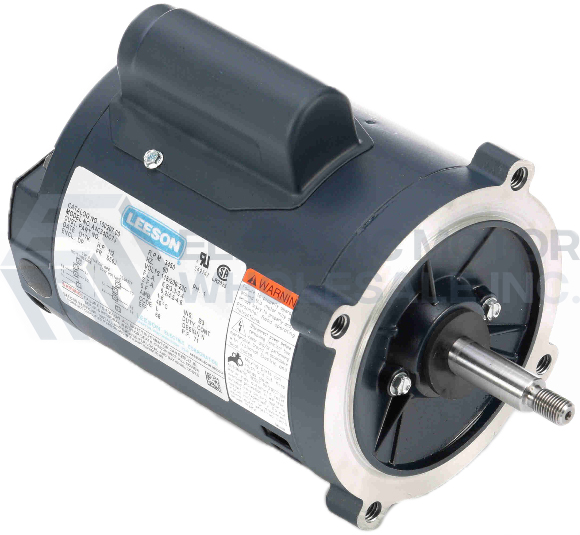

1.5HP LEESON 3600RPM 56J ODP 1PH PUMP MOTOR 119090.00

1.5HP LEESON 3600RPM 56J ODP 1PH PUMP MOTOR 119090.00

DP LESS BASE JP THREADED SHAFT.jpg

Part Number:

119090.00

Model/Spec Number:

A6C34DC75

Manufacturer:

Leeson Obsolete
119090.00 LEESON 1.5HP Single Phase DP Jet Pump Motor for commercial and industrial service.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

27 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

691720047446

Technical Details

Application:

Jet Pump

Output HP:

1.5

Output KW:

1.1

Output RPM:

3600

Frame NEMA:

56J

Mount NEMA:

C-Face No Base

Enclosure NEMA:

ODP

Voltage:

115/208-230

Frequency (Hz):

60

Mount Arrangement:

F1
