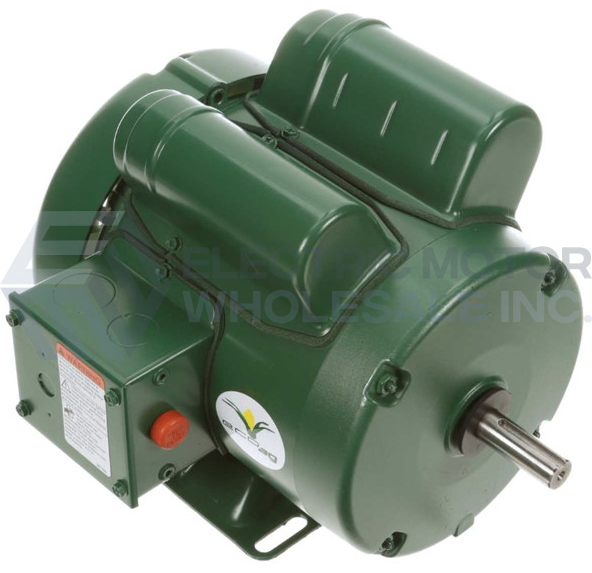

1/2HP LEESON 1725RPM 56 TEFC 1PH ECO-AG MOTOR 117690.00
1/2HP LEESON 1725RPM 56 TEFC 1PH ECO-AG MOTOR 117690.00
Product Overview
117690.00 LEESON 1/2HP Single Phase ECO-Ag Premium Efficient Farm Duty Motor is for use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.Part Number:
117690.00Model/Spec Number:
M6K17FB57Manufacturer:
Regal Rexnord CommercialTechnical Details
Specifications
Application | Farm Duty |
Output HP | 1/2 |
Output KW | 0.37 |
Output RPM | 1725 |
Frame Size NEMA | 56 |
Voltage | 115/208-230 |
Documentation
Additional Information
APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.
FEATURES:
- Premium efficient
- Steel frame construction
- 5/8" shaft output diameter
- Capacitor start/capcitor run design for reduced amperage
- Up-to 22% higher efficiency than standard Ag Motors
- Sealed bearings
- Shaft flinger
- High starting torque
- Manual overload protected
- Condensation drains
- 3 year warranty
