1HP LEESON 3450RPM 56HC TENV 1PH SST WASHDOWN MOTOR 116347.00

1HP LEESON 3450RPM 56HC TENV 1PH SST WASHDOWN MOTOR 116347.00

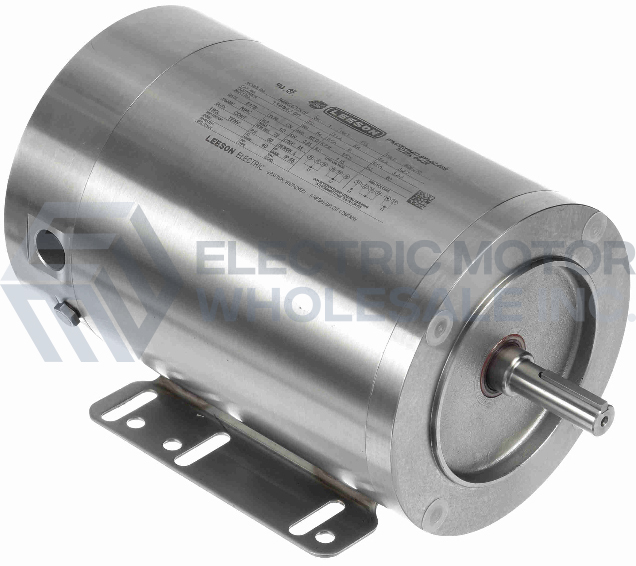

PREMIUM WG TENV 56 FRAME WITH BASE.jpg

Part Number:

116347.00

Model/Spec Number:

NZ6C34VK1

Manufacturer:

Leeson Obsolete
116347.00 LEESON 1HP WASHGUARD Premium Duck All-Stainless Motor is designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing and beverage industries.

Item Discontinued

Click below to request an agent review potential options.

Weight:

53 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.40.6040

UPC:

691720307441

Technical Details

Application:

Washguard Stainless

Output HP:

1

Output KW:

0.75

Output RPM:

3450

Frame NEMA:

56HC

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet
