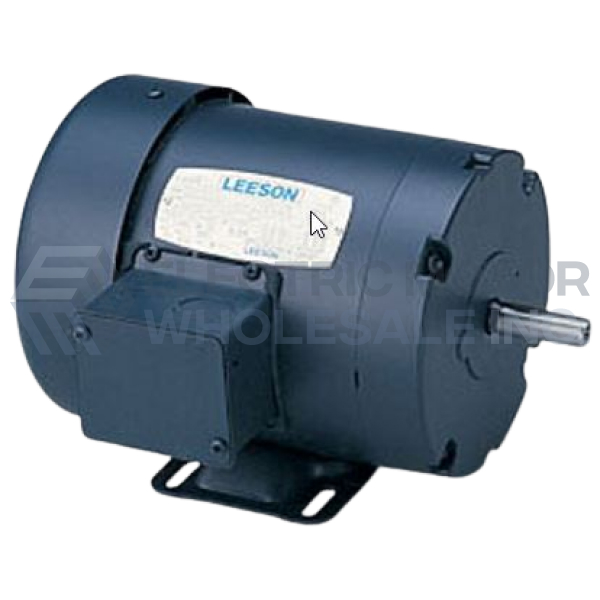

1HP LEESON 1725RPM 56HZ TEFC 3PH MOTOR 115830.00

Part Number:

115830.00

Model/Spec Number:

C6T17FB120

Manufacturer:

Leeson Obsolete

115830.00 LEESON 1HP Three Phase TEFC Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

34 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.8040

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	1
Output KW:	0.75
Output RPM:	1725
Frame Size NEMA:	56HZ
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP54
Voltage:	208-230/460

Documentation

Motor Drawing REF DASH-650

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts
F.L. Amps	3.6-3.8	F.L. Amps	1.9	F.L. Amps
S. F Amps	4.2	S. F Amps	2.1	S. F Amps
RPM	1800	Hertz	60
HP	1	Duty	CONTINUOUS	TYPE	TF
KW	0.75	Model Number	C6T17FB120B
Frame	56HZ	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	M
Insul Class	B	Protection	NOT	Therm.Prot.
Eff 100%	77	Eff 75%		PF	64
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number	NONE	CE	No	Bearing PE	6205
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	34 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	993500	Mounting	RIGID	Rotation	REV
