Electric Motors

/

Single Phase Electric Motors

/

LEESON Motors Single Phase

/

LEESON Single Phase WASHGUARD EPOXY Motors

/

LEESON Single Phase WASHGUARD EPOXY C-Face Less Base Motors

/

1.5HP LEESON 1725RPM 56C TEFC 1PH EPOXY WASHDOWN MOTOR 114319.00

1.5HP LEESON 1725RPM 56C TEFC 1PH EPOXY WASHDOWN MOTOR 114319.00

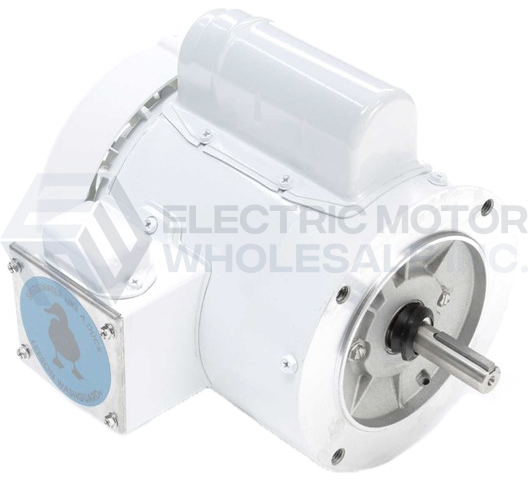

WASHGUARD 56C FRAME TEFC LESS BASE.jpg
Picture is for reference only.

Part Number:

114319.00

Model/Spec Number:

C6C17WC6

Manufacturer:

Regal Rexnord Commercial
114319.00 LEESON 1.5HP Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.
MSRP: $2,098.00

Regular Price

USD

$

809

41

QTY
Login to View Discounts

Weight:

48 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.40.6040

UPC:

691720013892

Technical Details

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame NEMA:

56C

Mount NEMA:

C-Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

LEESON Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.

  • Durable rolled steel frame with USDA-approved white epoxy finish
  • 5/8" Keyed output shaft
  • Capacitor Start
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Double lip contact seals and v-ring seals used for shaft seals
  • Four endshield drains
  • Electronic solid state encapsulated switch
  • UL Recognized and CSA Certified
