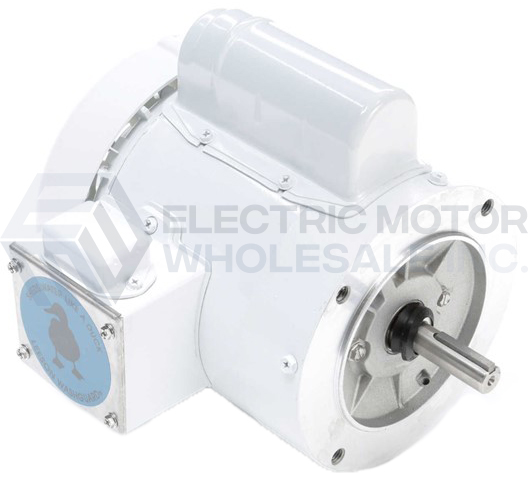

3/4HP LEESON 1725RPM 56C TEFC 1PH EPOXY WASHDOWN MOTOR 114315.00
3/4HP LEESON 1725RPM 56C TEFC 1PH EPOXY WASHDOWN MOTOR 114315.00
Part Number:
114315.00Model/Spec Number:
C6C17WC4GManufacturer:
Regal Rexnord CommercialMSRP: $1,445.00
Regular Price
USD
$
548
00
Shipping Details
Weight:
36 lbsDimensions:
13 x 22 x 13 inchesHS Code:
8501.40.4040UPC:
691720013854Technical Details
Specifications
Application: | Washdown Epoxy |
Output HP: | 3/4 |
Output KW: | 0.56 |
Output RPM: | 1725 |
Frame NEMA: | 56C |
Mount NEMA: | C-Face No Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
Voltage: | 115/208-230 |
Frequency (Hz): | 60 |
Documentation
Additional Information
LEESON Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.
- Durable rolled steel frame with USDA-approved white epoxy finish
- 5/8" Keyed output shaft
- Capacitor Start
- Stainless steel shaft, conduit box cover, nameplate, fan guard
- Double lip contact seals and v-ring seals used for shaft seals
- Four endshield drains
- Electronic solid state encapsulated switch
- UL Recognized and CSA Certified
