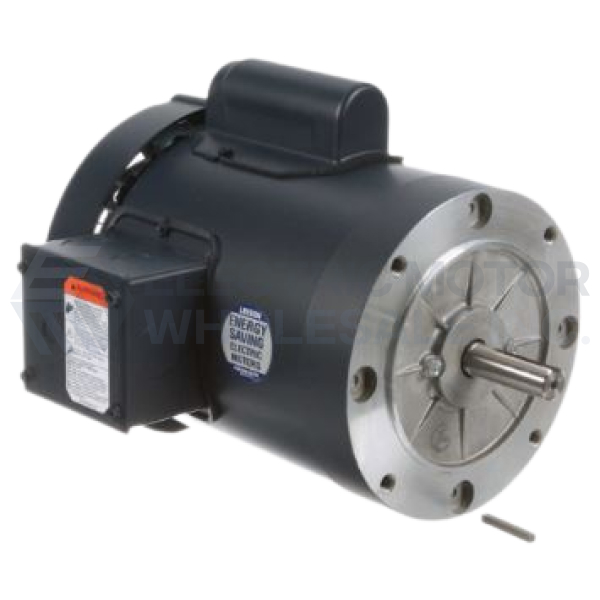

3/4HP LEESON 2850RPM 56C TEFC 1PH 50HZ MOTOR 113913.00

3/4HP LEESON 2850RPM 56C TEFC 1PH 50HZ MOTOR 113913.00

56CNB CAP START IND RUN.jpg

Part Number:

113913.00

Manufacturer:

Leeson Obsolete
113913.00 LEESON 3/4HP Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

33 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.40.4040

UPC:

691720012758

Technical Details

Application:

General Purpose

Output HP:

3/4

Output KW:

0.56

Output RPM:

2850

Frame NEMA:

56C

Mount NEMA:

C-Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

110/220

Frequency (Hz):

50
