1HP LEESON 2850RPM 56 IP22 1PH 50HZ MOTOR 113903.00
1HP LEESON 2850RPM 56 IP22 1PH 50HZ MOTOR 113903.00

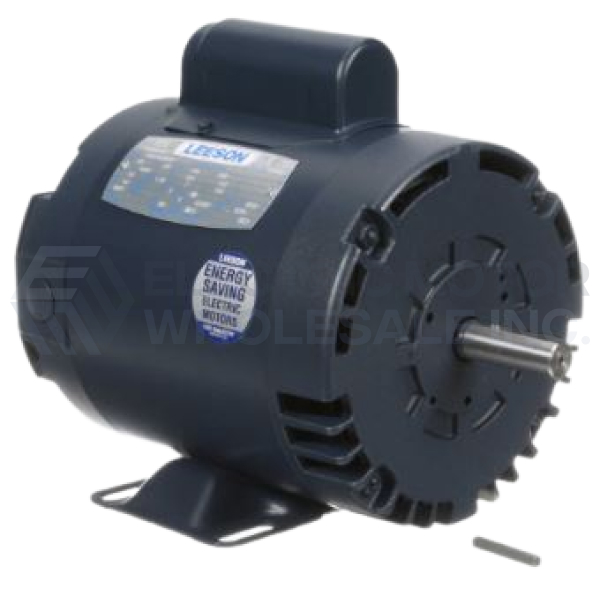

Picture is for reference only.
Part Number:
113903.00Model/Spec Number:
C6C28DB26Manufacturer:
Regal Rexnord CommercialThis part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
MSRP: $1,125.00
Regular Price
USD
$
467
78
Shipping Details
Weight:
36 lbsDimensions:
10 x 17 x 13 inchesHS Code:
8501.40.6040UPC:
691720012574Technical Details
Specifications
Application: | General Purpose |
Output HP: | 1 |
Output KW: | 0.75 |
Output RPM: | 2850 |
Frame NEMA: | 56 |
Mount NEMA: | Base Mount |
Enclosure NEMA: | ODP |
Enclosure IEC: | IP22 |
Voltage: | 110/220 |
Frequency (Hz): | 50 |
Documentation
Additional Information
LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.
Features Include:
- Durable rolled steel frame
- 5/8" Keyed output shaft
- High torque exceeds NEMA performance standards
- Capacitor start motor with centrifugal switch designed for 50Hz service
- Shielded ball bearings
- UL Recognized and CSA Certified
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
