1.5HP LEESON 1725RPM 56HC TEFC 1PH EPOXY WASHDOWN MOTOR 113300.00

1.5HP LEESON 1725RPM 56HC TEFC 1PH EPOXY WASHDOWN MOTOR 113300.00

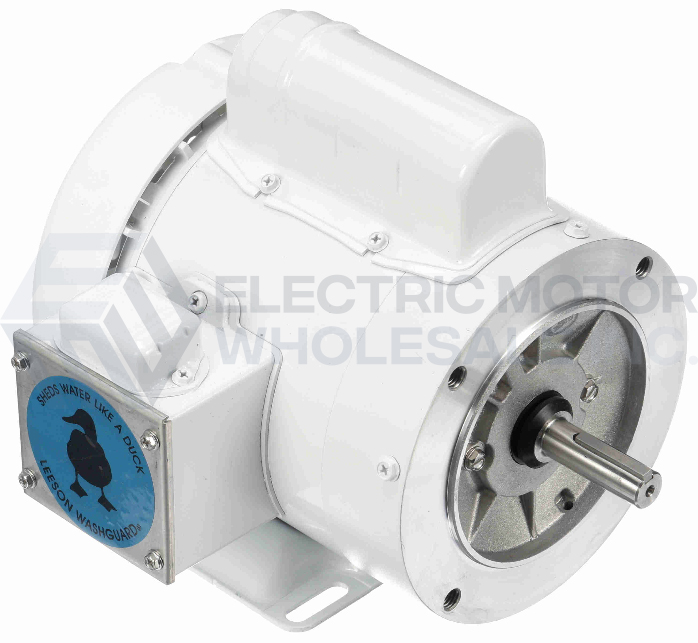

WASHGUARD 56 FRAME TEFC CFACE WITH BASE.jpg

Part Number:

113300.00

Model/Spec Number:

C6C17WK6

Manufacturer:

Regal Rexnord Commercial
113300.00 LEESON 1.5HP Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.
MSRP: $2,102.00

Regular Price

USD

$

798

00

QTY
Login to View Discounts

Weight:

47 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.40.6040

UPC:

691720011850

Technical Details

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame NEMA:

56HC

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

LEESON Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.

  • Durable rolled steel frame with USDA-approved white epoxy finish
  • 5/8" Keyed output shaft
  • Capacitor Start
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Double lip contact seals and v-ring seals used for shaft seals
  • Four endshield drains
  • Electronic solid state encapsulated switch
  • UL Recognized and CSA Certified
