1HP LEESON 1725RPM 56 TEFC 1PH EPOXY WASHDOWN MOTOR 112626.00

1HP LEESON 1725RPM 56 TEFC 1PH EPOXY WASHDOWN MOTOR 112626.00

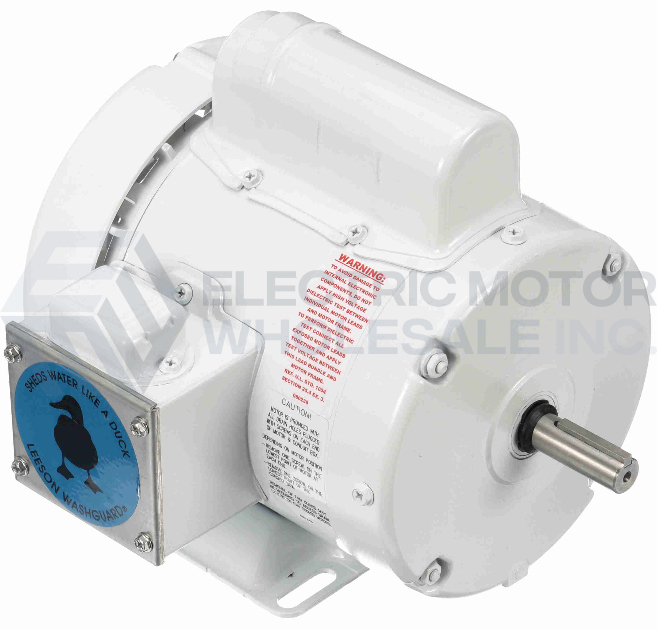

WASHGUARD 56 FRAME TEFC WITH BASE.jpg
Picture is for reference only.

Part Number:

112626.00

Model/Spec Number:

C6C17WB3

Manufacturer:

Regal Rexnord Commercial
112626.00 LEESON 1HP Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.
MSRP: $1,680.00

Regular Price

USD

$

634

41

QTY
Login to View Discounts

Weight:

38 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.40.6040

UPC:

691720011027

Technical Details

Application:

Washdown Epoxy

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

LEESON Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.

FEATURES:

  • Durable rolled steel frame with rigid base
  • USDA-approved white epoxy finish
  • 5/8" Keyed output shaft
  • Capacitor Start
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Double lip contact seals and v-ring seals used for shaft seals
  • Four endshield drains
  • Electronic solid state encapsulated switch
  • UL Recognized and CSA Certified
