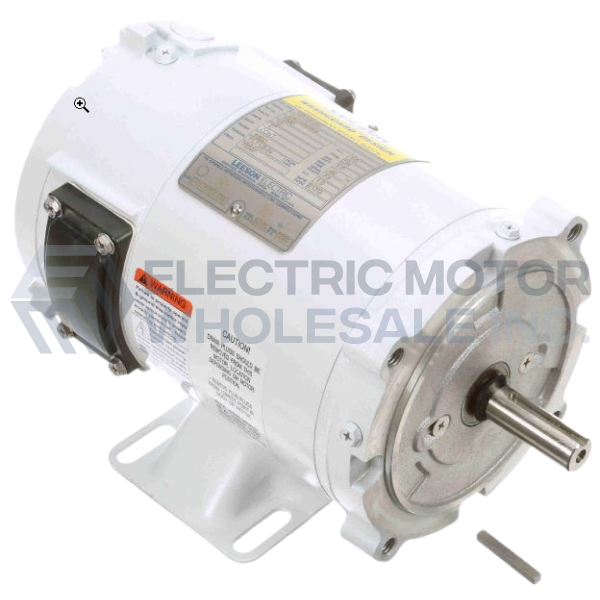

1/3HP LEESON 1750RPM 56C TENV 12VDC EPOXY WASHDOWN MOTOR 109297.00

1/3HP LEESON 1750RPM 56C TENV 12VDC EPOXY WASHDOWN MOTOR 109297.00


Part Number:

109297.00

Model/Spec Number:

C4D18VK8

Manufacturer:

Leeson Obsolete
109297.00 LEESON 1/3HP LOW VOLTAGE PMDC WASHGUARD MOTOR is suitable for installations having battery, solar powered, or generator supplied operation and is designed for extended life in wet, high humidity applications.

Ordering Notes

This product has been discontinued with no direct replacement from the manufacturer. The functional equivalent should be reviewed for application compatibility.


Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

29 lbs

Dimensions:

11 x 20 x 11 inches

HS Code:

8501.31.4000

UPC:

691720100189

Technical Details

Application:

Epoxy Washdown

Output HP:

1/3

Output KW:

0.25

Output RPM:

1750

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

12

Full Load Amps:

27.0

Winding:

Permanent Magnet

Enclosure NEMA:

TENV

Product Information Packet
