Product Overview

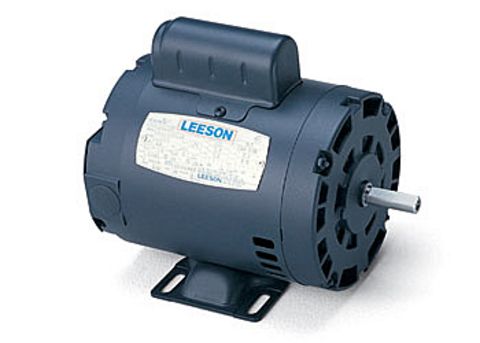

LEESON 101782.00, 3/4HP Single Phase Electric Wood Working Motor.Part Number:
101782Manufacturer:
Leeson ObsoleteManufacturer Part Number:
101782.00Technical Details
Specifications
Application | UNISAW, Wood Working |
Output HP | 3/4 |
Output RPM | 1900-4000 |
Frame Size NEMA | 48, 48Z |
Voltage | 115, 115/208-230, 115/230, 208, 208-230, 230 |
Frequency (Hz) | 60 |
Documentation
Additional Information
| Catalog Number: | 101782.00 Made in USA |
| Model Number: | C4C34DB15C |
| Description: | 3/4HP,3450RPM,48Z,DP,1PH,60HZ,WOOD WORKING |
| Ship Weight: | 27 lbs. |
FEATURES:
- Designed for woodworking applications
- Electronic starting switch
- High starting and breakdown torques
- 48 frame model has 1-1/2” long shaft by 1/2” Dia.
- Shaft extensions, each end, include keyway and flat, 90º apart
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 9.8 | F.L. Amps | 4.8-4.9 | F.L. Amps | |
| S. F Amps | 11 | S. F Amps | 5.4-5.5 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 3/4 | Duty | CONTINUOUS | TYPE | CD |
| KW | .56 | Model # | C4C34DB15C | ||
| Frame | 48Z | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 70 | Eff 75% | PF | 72 | |
| UL | No | CSA | Yes | Bearing OPE | 6203 |
| CC Number | EXEMPT | CE | No | Bearing PE | 6203 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 27 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | A-92005-116 | Mounting | RIGID | Rotation | SELECTIVE CCW |
| Assembly | LO101782 | Shaft Dia. | 1/2 IN | Ext. Diag. | 005278.1 |
