1/2HP LEESON 1750RPM 71 IP54 24VDC IEC PERMANENT MAGNET MOTOR 098067.00

Part Number:

098067.00

Model/Spec Number:

CI42D17FT7

Manufacturer:

Regal MOQ

098067.00 LEESON 1/2HP 24VDC Metric IEC Frame IP54 Motor is built to IEC 34-1 electrical and mechanical standards.

Ordering Notes

Minimum quantity purchase. Subject to production times. Average build times are 4-8 weeks ARO. Non-returnable.

MSRP: $1,244.00

Regular Price

USD

$

490

00

QTY

Login to View Discounts

Shipping Details

Free No Rush Shipping

Weight:

27 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.31.4000

UPC:

691720001103

Technical Details

Specifications

Application:	General Purpose
Output HP:	1/2
Output RPM:	1800
Frame IEC:	71
Mount IEC:	Optional Mounting
Input Voltage DC:	24
Full Load Amps:	20.0
Winding:	Permanent Magnet
Enclosure NEMA:	TEFC
Enclosure IP:	IP54

Documentation

Product Information Packet

Additional Information

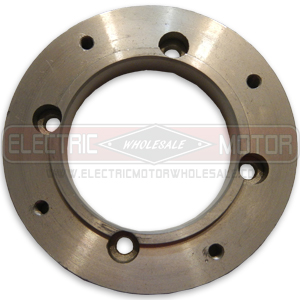

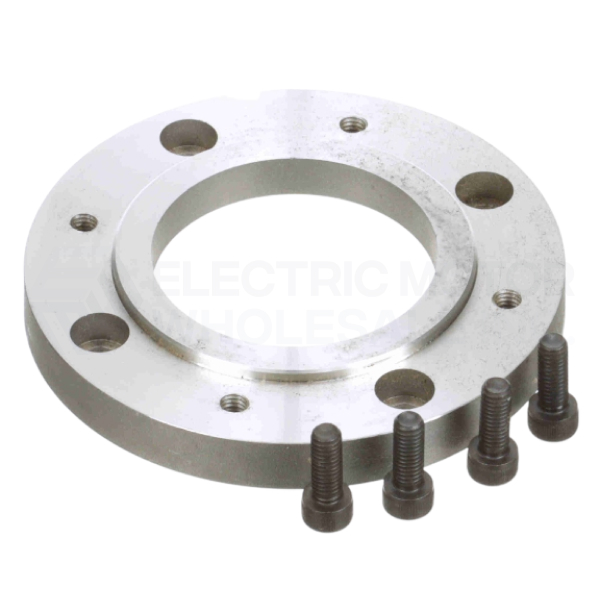

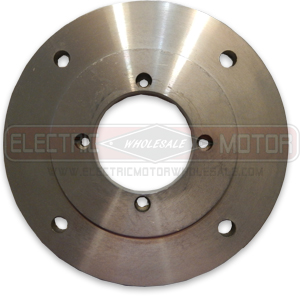

LEESON DC METRIC IEC Frame IP54 Motors are built to IEC 34-1 electrical and mechanical standards. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to be field modified to B3 rigid base mounted construction, B5 flange mounted or B14 face mounted construction using conversion kits. Please note the one or more of the mounting kits must be used with IEC motors of these frame sizes.

Electrical & Mechanical Features: A terminal board is provided for connections. All fasteners are metric. Electrical and mechanical features are the same as listed for the NEMA frame motors. Tachometer mounting kits are available for 71 and 80 frames only.

NOTE: These round body motors require either a B3 rigid base, B14 face, or B5 flange kit shown in related products.
