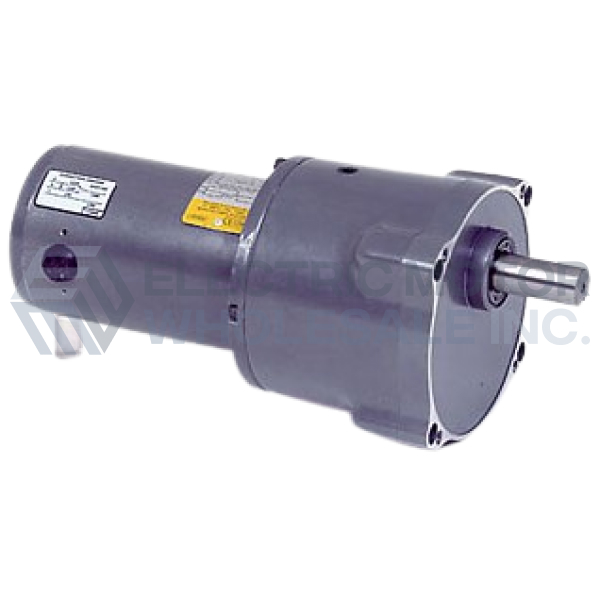

1/6HP LEESON 59RPM TEFC 110V 1PH PE350 PARALLEL GEARMOTOR 096007.00

LEESON PE350 Series SUB-FHP Parallel Gearmotor is totally enclosed for continuous duty and general purpose applications. Permanent split capacitor motors rated for 115/230VAC, 60/50HZ input. Baldor/Bison/Bodine/Dayton direct interchange.

Features:

• 3/4" Keyed output shaft, hardened steel
• Rugged die cast aluminum gear housing for maximum gear and bearing support
• Precision machined gearing, hardened for maximum load capacity
• All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
• Oversized output bearings for greater overhung load capacity and long life
• High carbon alloy output shaft provides maximum strength and rigidity
• All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
• Heavy duty industrial oil seals keep lubricant in and dirt out
• Conduit box is optional and NOT supplied with the motor
• See related products for conduit box

Application Notes:

• These gearmotors are designed for mounting at any angle, but motor below the reducer (shaft up with motor below) should be avoided to prevent leakage of lubricant into the motor should the shaft seal fail.
• Overhung load capacities shown are at the center of output shaft
• Run capacitor included
