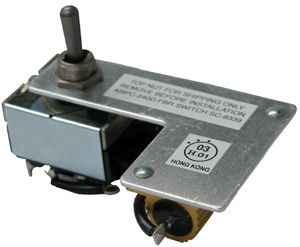

KBAC Auto/Manual Switch Kit 9481

KBAC 9481 Auto/Manual Switch Kit for use with SIAC is designed for installation on the front cover of the KBAC inverters. It is used to select either the Main Speed Potentiometer for “manual operation” or a remote voltage following analog signal for “automatic operation”, from the SIAC Signal Isolator option (Part No. 9600).

KBAC Auto/Manual Switch Kit for use with SIAC is designed for installation on the front cover of the KBAC inverters. It is used to select either the Main Speed Potentiometer for “manual operation” or a remote voltage following analog signal for “automatic operation”, from the SIAC Signal Isolator option (Part No. 9600). This switch assembly is designed to operate with the following, or higher, Software Revision Codes: KBAC-24D: 1.24, KBAC-27D: 1.21, KBAC-29: 1.03, KBAC-45: 1.11, KBAC-48: 1.34. The software revision code is printed on the bottom right side of the 2.5” x 7/8” silver ratings label, which is located on the top of the drive. The revision code is given in the format “XX/1.24”.
