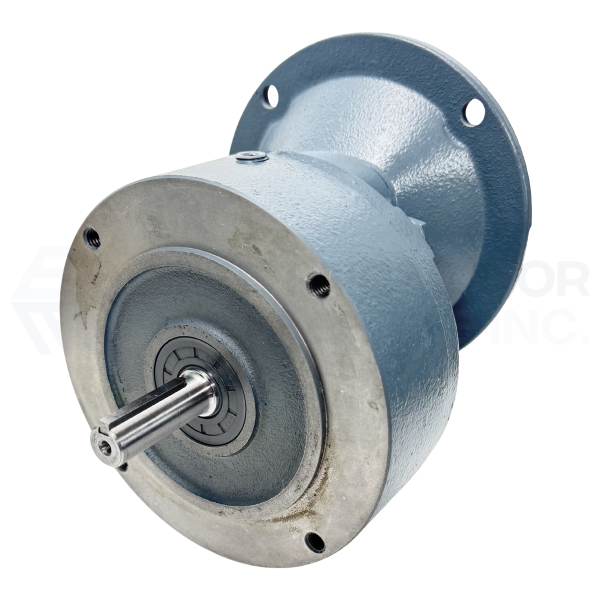

JRWPC01-5:1-NEMA56C JIE JDrive 5:1 Cast Iron 56C Ratio Multiplier

JRWPC01-5:1-NEMA56C JIE JDrive 5:1 Cast Iron 56C Ratio Multiplier

Size1-RatioMultiplier wlogo.jpg

Part Number:

JRWPC015-56C

Manufacturer:

JIE

Manufacturer Part Number:

JRWPC01-5-NEMA56C
JRWPC01-5:1-NEMA56C JIE JDrive 5:1 Ratio Multiplier can reduce or increase input speed when combined with right angle units for high ratios.

Technical Details

Design:

Ratio Multiplier

Output RPM@1750:

350

Output Torque (lb-in):

183

Ratio:

5:1

NEMA Input Config:

56C / .625”

Input Config:

JRWP

Output Config:

Solid Shaft

Output Shaft "Inch":

.625”

Shaft Center Dimension:

1.675

Housing:

Cast Iron

JRWPC01-5-NEMA56C-IECRatings.pdf

JIE JDrive Ratio Multipliers can reduce or increase input speed when combined with right angle units for high ratios.

Features:

  • High efficiency
  • Cast iron construction
  • Universal mounting positions
  • Shipped with synthetic oil
