ELECTRA-GEAR EL-TXMQ-4.000-140TC-56C RATIO MULTIPLIER EL708225
ELECTRA-GEAR EL-TXMQ-4.000-140TC-56C RATIO MULTIPLIER EL708225
Product Overview

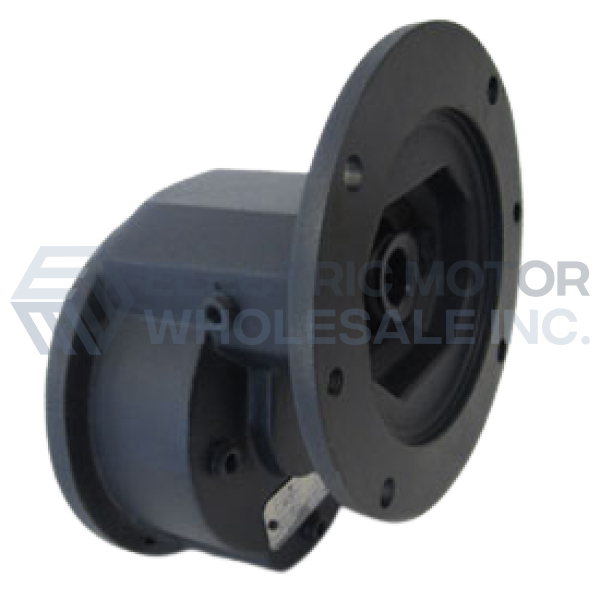

EL708225 ELECTRA-GEAR EL-TXMQ-4.000-140TC-56C Die Cast Aluminum Ratio Multiplier can reduce or increase input speed when combined with right angle units for high ratios.Part Number:
EL708225Model/Spec Number:
EL-TXMQ-4.000-140TC-56CManufacturer:
Grove GearManufacturer Part Number:
EL708225Technical Details
Specifications
| Design | Ratio Multiplier |
| Output RPM@1750 | 438 |
| Output Torque (lb-in) | 511 |
| Max Input HP @1750 | 3.0 |
| Ratio | 4.000 |
| NEMA Input Config | 143-5TC / 0.875" |
Additional Information
ELECTRA-GEAR Die Cast Aluminum Ratio Multipliers can reduce or increase input speed when combined with right angle units for high ratios.
FEATURES:
- Unpainted
- Helical gearing to optimize system efficiency.
- Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
- Washdown Friendly Exterior
- Die Cast Aluminum construction
- Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant – USDA Class H1 approved.
- Internal compression chamber eliminates breather vent
- Universal mounting positions
- High Torque Ratings
MSRP: $1,177.54
Regular Price
USD
$
598
43
