DART CONTROLS 125 SERIES ANALOG SCR CHASSIS DRIVE 123D-C

123D-C DART Controls 125 Series Analog SCR Drive is a cost-effective solution that incorporates up-to-date design and engineering in a compact package. Installation and field adjustments are facilitated using a barrier type terminal strip and large, easily adjusted trimpots. Standard features include an inhibit circuit for start/stop operation and 1% speed regulation over a 50:1 speed range. Long life and quality are assured by 100% full load testing. The 125 Series is ideal for applications such as office machinery, conveyors, packaging equipment, printers, conveyorized tunnels, process equipment, centrifuges, and exercise equipment.

Features:

• Fixed acceleration rate of 0.5 seconds
• +/-10% rated line voltage
• Adjustable horsepower settings
• Barrier terminal strip
• Full wave bridge supply
• 1% speed regulation
• Adjustable minimum speed (0-30% of base)
• Adjustable maximum speed (66-100% of base)
• Adjustable IR compensation
• Adjustable current limit
• -10°C to +45°C ambient temperature
• Line voltage compensation

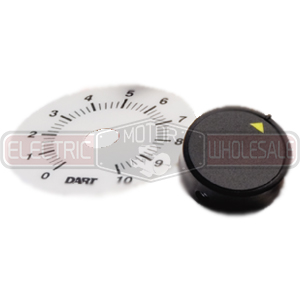

• 5K ohm speed potentiometer kit included
• 50:1 speed range
• Overload capacity: 200% for one minute
• Transient voltage protection
• Voltage follower mode - isolated signal (0-10VDC)
• Inhibit circuit - permits low power start and stop
• Double current/HP rating with additional heat sink (see related products)
