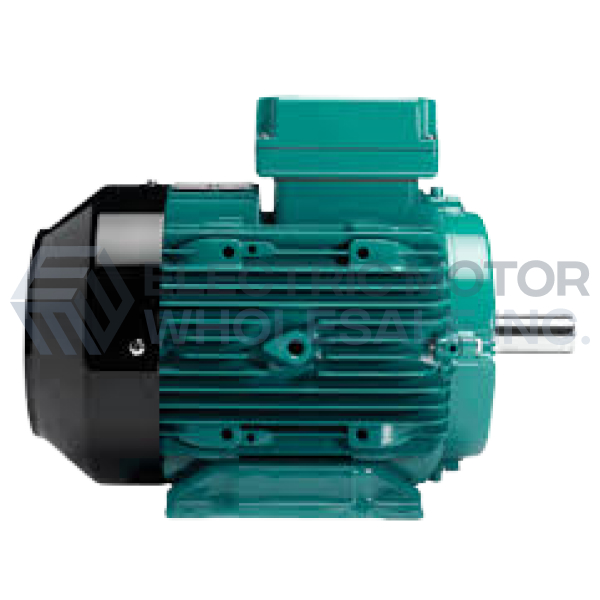

BC4M5.5V4C BROOK CROMPTON 5.5HP IEC Metric Motor BC4M5.5-4C

5.5HP BROOK CROMPTON 1800RPM 112MC B14 230/460V 3PH IEC MOTOR BC4M5.5V4C

Part Number:

BC4M5.5V4C

Manufacturer:

Brook Crompton

Manufacturer Part Number:

BC4M5.5-4C

BC4M5.5V4C BROOK CROMPTON 5.5HP Heavy duty cast iron construction; frame, end brackets & conduit box with heavy gauge steel; fanguard and non-sparking fan. Used for Severe Duty Applications.

Technical Details

Specifications

Brand:	Brook Crompton
Application:	General Purpose
Output HP:	5.5
Output KW:	4.0
Output RPM:	1800//1500
Frame Size IEC:	112MC
Mount IEC:	B34 Foot/C-Face
Enclosure NEMA:	TEFC
Enclosure IEC:	IP55
IEC Shaft Dia.:	28mm

Documentation

Product Packet

Additional Information

Description: Heavy duty cast iron construction; frame, end brackets & conduit box with heavy gauge steel; fanguard and non-sparking fan. Used for Severe Duty Applications.

Removable/repositionable feet
NEMA MG1-PART 31 Inverter Duty
VPI Impregnation Tropicalized
Class F insulation with class B temperature rise
Cast Iron conduit box with drilled and tapped entry is rotatable in 90 degree increments
Warranty: 3 Years
CSA approved for Class I; Division 2
