300HP BROOK CROMPTON 3600RPM 355S B3 460V 3PH IEC MOTOR BC2M300-9

300HP BROOK CROMPTON 3600RPM 355S B3 460V 3PH IEC MOTOR BC2M300-9

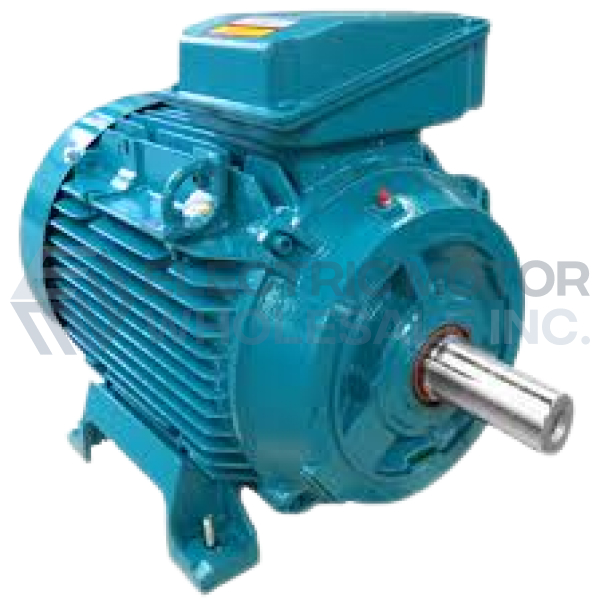

Cast Iron.jpg
Picture is for reference only.

Part Number:

BC2M300-9

Manufacturer:

Brook Crompton

Manufacturer Part Number:

BC2M300-9
BC2M300-9BROOK CROMPTON 300HP Cast Iron Premium Efficient Metric Motor is used in a diverse range of applications from food and drink to water and sewage, from heating and ventilation to refrigeration.

Item Discontinued

Click below to request an agent review potential options.

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.51.6000

Technical Details

Brand:

Brook Crompton

Application:

General Purpose

Output HP:

300

Output KW:

225.0

Output RPM:

3600//3000

Frame Size IEC:

355S

Mount IEC:

B3 Foot Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

IEC Shaft Dia.:

100mm

Motor Drawing

Connection Diagram
