7.5HP BROOK CROMPTON 3600RPM 132S 3PH IEC B3 MOTOR BA2M7.5-4BRK
7.5HP BROOK CROMPTON 3600RPM 132S 3PH IEC B3 MOTOR BA2M7.5-4BRK

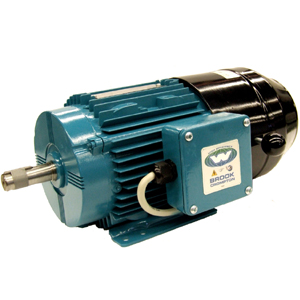

Picture is for reference only.
Part Number:
BA2M7.5-4BRKManufacturer:
Brook CromptonManufacturer Part Number:
BA2M7.5-4BRKThis is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
16 x 20 x 16 inchesTechnical Details
Specifications
Application: | Brakemotor |
Output HP: | 7.5 |
Output RPM: | 1900-4000 (2P) |
Frame Size IEC: | 132 |
Mount IEC: | B3 Foot Mount |
Enclosure NEMA: | TEFC, IP55 N |
Voltage: | 208, 230, 208-230/460, 460 |
Frequency (Hz): | 60 |
Efficiency: | IE3: Premium |
Thermal Protection: | None |
Additional Information
Catalog Number:
BA2M7.5-4BRK
Description:
7.5HP,3600RPM,132S,208-230/460V,IP55,3PH,60HZ,IEC METRIC
Brake Ft. Lbs:
59.9
Ship Weight:
143 lbs.
This Brook Crompton Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team
This Brook Crompton product is normally stocked.
For expedited needs, Contact Our Sales Team for availability.
APPLICATIONS: Provides the means of slowing or stopping the driven equipment effectively and safely in a very short time period. This brake motor features proven reliability with long life, various torque settings for rapid or softer braking, fast reaction 'force voltage' option, high efficiency 'W' motors for energy and cost savings, and more.
B3 Rigid Mount design
Aluminum construction
Removable feet
Premium efficient
All 230/460 volt motors supplied with 230 volt coil on brake.
