25HP BROOK CROMPTON 3600RPM 160LC B14 230/460V 3PH IEC MOTOR BA2M025V4C
25HP BROOK CROMPTON 3600RPM 160LC B14 230/460V 3PH IEC MOTOR BA2M025V4C

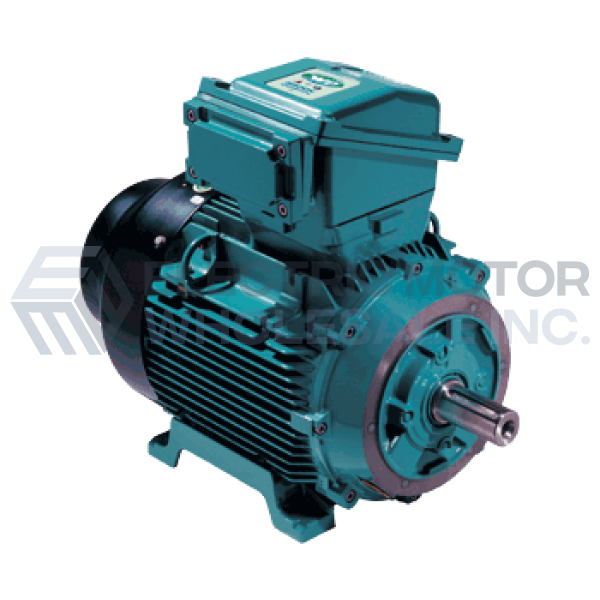

Picture is for reference only.
Part Number:
BA2M025V4CManufacturer:
Brook CromptonManufacturer Part Number:
BA2M025-4CClick below to request an agent review potential options.
Shipping Details
Weight:
320 lbsDimensions:
24 x 36 x 28 inchesHS Code:
8501.52.0000Technical Details
Specifications
Brand: | Brook Crompton |
Application: | General Purpose |
Output HP: | 25 |
Output KW: | 18.50 |
Output RPM: | 3600//3000 |
Frame Size IEC: | 160LC |
Mount IEC: | B34 Foot/C-Face |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP55 |
IEC Shaft Dia.: | 42mm |
Documentation
Additional Information
APPLICATIONS: Used in a diverse range of applications from food and drink to water and sewage, from heating and ventilation to refrigeration. Some of the benefits of aluminum over cast iron include high resistance to corrosion and atmospheric attack (except chlorine, salt-laden or sulphuric acid) and the fact that aluminum is approximately one third the weight of cast iron.
- Removable base
- NEMA MG1-PART 31 Inverter Duty
- VPI Impregnation Tropicalized
- Class F insulation
- Split conduit box is 90 degrees rotatable
- Warranty: 3 Years
- CSA approved for Class I ; Division 2
