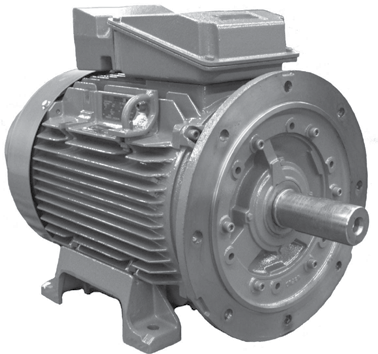

75HP BROOK CROMPTON 1000RPM W-DF280S 380-415V IEC 3PH MOTOR 367E319WC-04

75HP BROOK CROMPTON 1000RPM W-DF280S 380-415V IEC 3PH MOTOR 367E319WC-04

Picture is for reference only.

Part Number:

367E319WC-04

Manufacturer:

Brook Crompton

Manufacturer Part Number:

367E319WC-04
BROOK CROMPTON 367E319WC-04, 75HP Foot Mounted Cast Iron Metric Motor is designed, tested and manufactured in accordance with the latest Euronorm and relevant country standards. Brook Crompton's range of EEx nA motors are fully compliant with the requirements of ATEX Directive (94/9/EC).
MSRP: $23,724.00

Regular Price

USD

$

16,353

00

QTY
Login to View Discounts

Dimensions:

16 x 20 x 16 inches

Technical Details

Application:

Explosion Proof

Output HP:

75

Output RPM:

750-1000 (8P)

Frame Size IEC:

280

Mount IEC:

B3 Foot Mount, B5 D Flange

Enclosure NEMA:

TEFC, EEx nA, IP55 N

Voltage:

380-415

Frequency (Hz):

50, 60

Efficiency:

IE2: High Eff.

Thermal Protection:

None

Connection Diagram

Hazardous Location Technical Section

EEx nA Explosion Proof Dimensions

EEx nA Explosion Proof Performance Sheet

EEx nA Install and Setup

Installation & Maintenance Booklet

Catalog Number:  367E319WC-04
Description:  75HP,1000RPM,W-DF280S,380-415V,IP55,3PH,50/60Hz,ATEX IEC
Ship Weight:  821 lbs.
