60HP BROOK CROMPTON 1500RPM EF225M 380-415V IEC 3PH MOTOR 358E218WC-04

60HP BROOK CROMPTON 1500RPM EF225M 380-415V IEC 3PH MOTOR 358E218WC-04

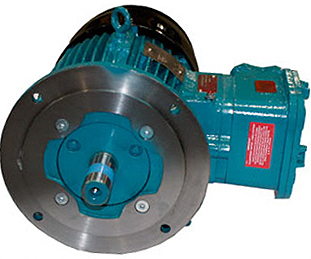

Picture is for reference only.

Part Number:

358E218WC-04

Manufacturer:

Brook Crompton

Manufacturer Part Number:

358E218WC-04
BROOK CROMPTON 358E218WC-04,60HP Flange Mounted Cast Iron Metric Motor is designed, tested and manufactured in accordance with the latest Euronorm and relevant country standards. All EEx d/de motors fully comply with the requirements of the ATEX Directive(94/9/EC)
MSRP: $15,894.00

Regular Price

USD

$

10,956

00

QTY
Login to View Discounts

Dimensions:

16 x 20 x 16 inches

Technical Details

Application:

Explosion Proof

Output HP:

60

Output RPM:

1300-1800 (4P)

Frame Size IEC:

225

Mount IEC:

B3 Foot Mount, B5 D Flange

Enclosure NEMA:

TEFC, EExd

Voltage:

380-415

Frequency (Hz):

50, 60

Efficiency:

IE3: Premium

Thermal Protection:

None

Connection Diagram

EExd d/de Flameproof Brochure

Hazardous Location Technical Section

EExd Explosion Proof Dimensions

EExd Explosion Proof Performance Sheet

Installation and Maintenance Manual

Safety Manual

Catalog Number:  358E218WC-04
Description:  60HP,1500RPM,EF225M,380-415V,IP55,3PH,50/60Hz,ATEX IEC
Ship Weight:  482 lbs.
