3HP BROOK CROMPTON 1000RPM W-DF112M 380-415V IEC 3PH MOTOR 287E308WC-04

3HP BROOK CROMPTON 1000RPM W-DF112M 380-415V IEC 3PH MOTOR 287E308WC-04

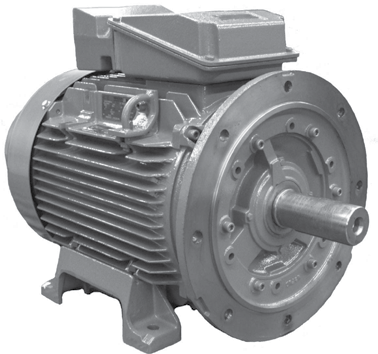

Picture is for reference only.

Part Number:

287E308WC-04

Manufacturer:

Brook Crompton

Manufacturer Part Number:

287E308WC-04
BROOK CROMPTON 287E308WC-04, 3HP Foot Mounted Cast Iron Metric Motor is designed, tested and manufactured in accordance with the latest Euronorm and relevant country standards. Brook Crompton’s range of EEx nA motors are fully compliant with the requirements of ATEX Directive (94/9/EC).

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Dimensions:

16 x 20 x 16 inches

Technical Details

Application:

Explosion Proof

Output HP:

3

Output RPM:

750-1000 (8P)

Frame Size IEC:

112

Mount IEC:

B3 Foot Mount, B5 D Flange

Enclosure NEMA:

TEFC, EEx nA, IP55 N

Voltage:

380-415

Frequency (Hz):

50, 60

Efficiency:

IE2: High Eff.

Thermal Protection:

None

Connection Diagram

Hazardous Location Technical Section

EEx nA Install and Setup

Installation & Maintenance Booklet

Catalog Number:  287E308WC-04
Description:  3HP,1000RPM,W-DF112M,380-415V,IP55,3PH,50/60Hz,ATEX IEC
Ship Weight:  64 lbs.
