...Brook Crompton Discontinued Motors

/

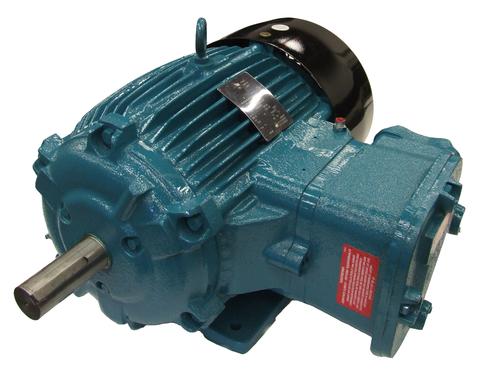

5.5HP BROOK CROMPTON 1000RPM EF132M 380-415V IEC 3PH MOTOR 258E309C-00

Part Number:

258E309C-00

Manufacturer:

Brook Crompton

Manufacturer Part Number:

258E309C-00

BROOK CROMPTON 258E309C-00, 5.5HP Foot Mounted Cast Iron Metric Motor is designed, tested and manufactured in accordance with the latest Euronorm and relevant country standards. All EEx d/de motors fully comply with the requirements of the ATEX Directive(94/9/EC)

MSRP: $3,144.00

Regular Price

USD

$

2,168

00

QTY

Login to View Discounts

Shipping Details

Dimensions:

16 x 20 x 16 inches

Technical Details

Specifications

Application:	Explosion Proof
Output HP:	5.5
Output RPM:	750-1000 (8P)
Frame Size IEC:	132
Mount IEC:	B3 Foot Mount
Enclosure NEMA:	TEFC, EExd
Voltage:	380-415
Frequency (Hz):	50, 60
Efficiency:	IE2: High Eff.
Thermal Protection:	None

Documentation

Connection Diagram

EExd d/de Flameproof Brochure

Hazardous Location Technical Section

EExd Explosion Proof Dimensions

EExd Performance Data Sheet

Installation and Maintenance Manual

Safety Manual

Additional Information

Catalog Number:	258E309C-00
Description:	5.5HP,1000RPM,EF132M,380-415V,IP55,3PH,50/60Hz,ATEX IEC
Ship Weight:	102 lbs.
