Electric Motors

/

Discontinued Electric Motors

/

Brook Crompton Discontinued Motors

/

10HP BROOK CROMPTON 3000RPM EF132S 380-415V IEC 3PH MOTOR 258E111C-04

10HP BROOK CROMPTON 3000RPM EF132S 380-415V IEC 3PH MOTOR 258E111C-04

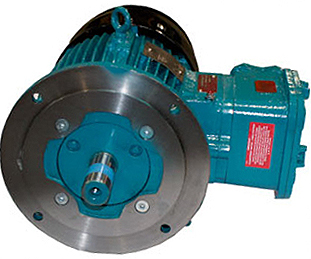

Picture is for reference only.

Part Number:

258E111C-04

Manufacturer:

Brook Crompton

Manufacturer Part Number:

258E111C-04
BROOK CROMPTON 258E111C-04, 10HP Flange Mounted Cast Iron Metric Motor is designed, tested and manufactured in accordance with the latest Euronorm and relevant country standards. All EEx d/de motors fully comply with the requirements of the ATEX Directive(94/9/EC)
MSRP: $3,601.00

Regular Price

USD

$

2,483

00

QTY
Login to View Discounts

Dimensions:

16 x 20 x 16 inches

Technical Details

Application:

Explosion Proof

Output HP:

10

Output RPM:

1900-4000 (2P)

Frame Size IEC:

132

Mount IEC:

B3 Foot Mount, B5 D Flange

Enclosure NEMA:

TEFC, EExd

Voltage:

380-415

Frequency (Hz):

50, 60

Efficiency:

IE3: Premium

Thermal Protection:

None

Dimension Drawing

Connection Diagram

EExd d/de Flameproof Brochure

Hazardous Location Technical Section

EExd Explosion Proof Dimensions

EExd Explosion Proof Performance Sheet

Installation and Maintenance Manual

Safety Manual

Catalog Number:  258E111C-04
Description:  10HP,3000RPM,EF132S,380-415V,IP55,3PH,50/60Hz,ATEX IEC
Ship Weight:  86 lbs.
