BISON GEAR 881 SERIES PARALLEL SPEED REDUCER 060-881-2004FPM

Part Number	060-881-2004FPM
Product Series	881 Speed Reducers
Speed @ 1725RPM	457	RPM
Max Torque	204**	InLb
Torque @ 1/4HP	32	InLb
Torque @ 1/3HP	43	InLb
Torque @ 1/2HP	63	InLb
Torque @ 3/4HP	96	InLb
Torque @ 1HP	128	InLb
Torque @ 1.5HP	193**	InLb
Ratio :1	3.8
Input Hp	UP TO 1.5	HP
Input Hp	UP TO 1-1/2	HP
Overhung Load	425	Lbs
Weight	16.5	Lbs
Lubrication	Oil	Type
Input Bore Size	0.625 (5/8)	in
Output Shaft Size	1	in

**Output torque is gear limited

BISON GEAR 881 SERIES PARALLEL SPEED REDUCERS provide more torque at a lighter weight. Equipped with induction hardened gearing at an efficiency rating of 95-97%, these continuous duty gear reducers do the job. Up to 1195 in-lbs of torque!

The 881 series adapts to NEMA 56C motors.

Interchangeable with Leeson P1100 Series & Bison 480 Series Gearmotors when purchased with footplate.

FEATURES:

• 1" Keyed output shaft
• 56C Flange input
• Housing: Precision machined die cast aluminum
• Lubrication: Lifetime oil bath, sealed and gasketed
• Bearings: Ball and needle
• Shafts: Hardened steel
• Finish: Gloss black powder coat
• Mounting: Face or baseplate, any angle

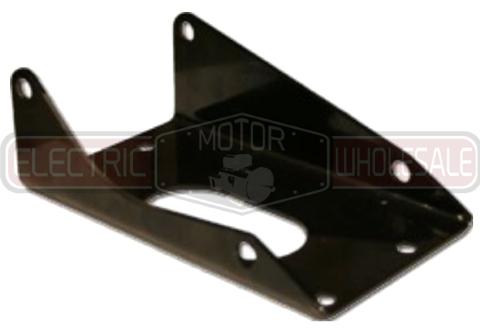

• Footplate included
