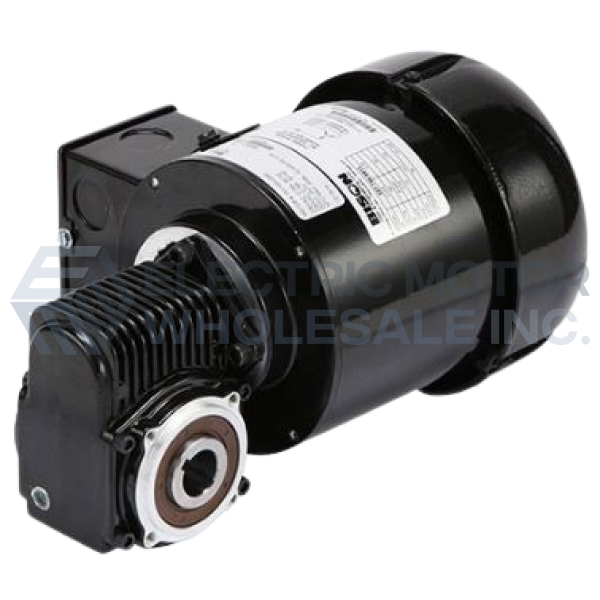

1/4HP BISON 124RPM TEFC 115/230VAC 750 SERIES RIGHT ANGLE GEARMOTOR 026-756-4413
1/4HP BISON 124RPM TEFC 115/230VAC 750 SERIES RIGHT ANGLE GEARMOTOR 026-756-4413
Part Number:
0267564413Manufacturer:
Bison GearManufacturer Part Number:
026-756-4413Technical Details
Specifications
Design: | Right Angle Hollow Bore | Input HP: | 1/4 |
Output KW: | 0.19 | Output RPM: | 124 |
Gear Ratio: | 13.3:1 | Torque Lb-In: | 76 |
Overhung Load (lb.): | 300 | Voltage: | 115/230 |
Full Load Amperage: | 2.4/1.3 | Frequency (Hz): | 60//50 |
Application: | General Purpose | Frame Size: | 42 |
Documentation
Additional Information
APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, commercial broiling ovens, machine tools and many other applications requiring adjustable speed.
FEATURES:
- Gearing: Hardened steel worm, forged bronze gear
- Finish: Gloss black powder coat
- Housing: Precision machined die cast aluminum
- Lubrication: Lifetime oil bath, sealed and o-ringed
- Gearhead Bearings: Ball
- Shafts: 3/4" Keyed Hollow Bore Output
- Mounting: All position
- Motor Type: Permanent split capacitor
- Rotation: Reversible
- Motor Bearings: Double shielded ball bearing support
- Insulation: Class B
- Enclosure: TEFC
- Global safety recognition: UL, CUL
- Duty: Continuous
