017-261-1221 BISON 1/7HP 8RPM Stainless SaniMotor Gearmotor 0172611221

Gear Motors

Gearmotors Three Phase

BISON GEAR Three Phase Gearmotors

BISON Sanimotors Inverter Duty 3ph

1/7HP BISON 8RPM TENV 460VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-261-1221

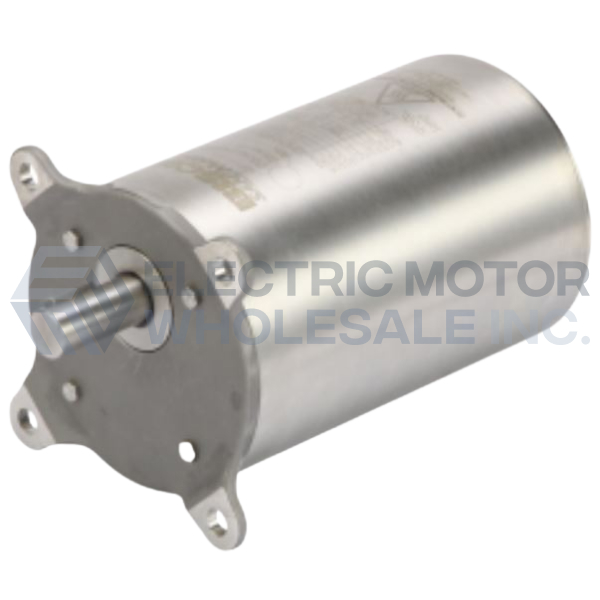

Picture is for reference only.

Part Number:

0172611221

Manufacturer:

Bison Gear

Manufacturer Part Number:

017-261-1221

017-261-1221 BISON 1/7HP 8RPM Inverter Duty SaniMotor Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to temperature extremes, constantly wet environments, and the use of harsh cleaning agents.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $2,463.99

Regular Price

USD

1,971

QTY

Shipping Details

Free No Rush Shipping

Weight:

26 lbs

Dimensions:

8 x 12 x 8 inches

HS Code:

8501.51.2020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/7
Output KW:	0.11
Output RPM@60hz:	8
Gear Ratio:	221:1
Torque Lb-in.@60hz:	500
Overhung Load (lb.):	240
Voltage AC:	460
Full Load Amp@60hz:	0.42
Frequency (Hz):	6-60

Documentation

Product Information Packet

Additional Information

BISON Inverter Duty Stainless Steel SantiMotor 3ph Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to constantly wet environments, and the use of harsh cleaning agents.

FEATURES:

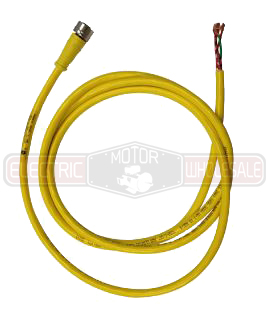

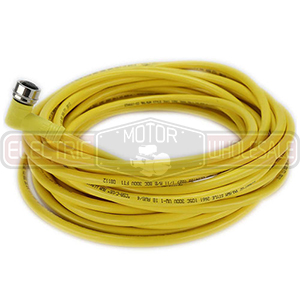

30 foot power cable included
Gearing: Precision machined on automated CNC mills
Geartrain: Engineered to handle up to 200% shock-loading
Housing: 304 stainless steel
Lubrication: High performance grease for food processing
Shafts: 5/8" Keyed 304 Stainless Output Shaft
Mounting: All position
Motor Type: 460VAC, 3 phase Inverter Duty
- 6-60 Hz Constant Torque
- 60-90 Hz Constant Horsepower
Motor Bearings: Sealed ball bearings
Insulation: Class F (155ºC)
Enclosure: TENV
Global safety recognition: UL
Ambient temperature: 0º to 40ºC
Continuous duty
