1/7HP BISON 353RPM TENV 460VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-261-1005

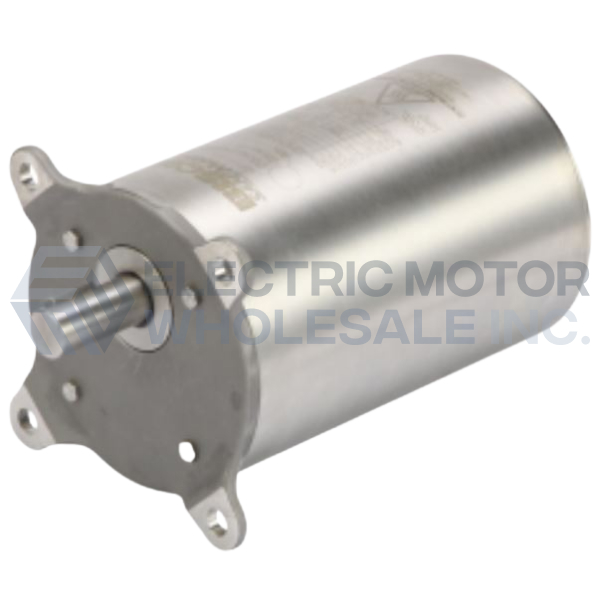

Picture is for reference only.

Part Number:

0172611005

Manufacturer:

Bison Gear

Manufacturer Part Number:

017-261-1005

017-261-1005 BISON 1/7HP 353RPM Inverter Duty SaniMotor Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to temperature extremes, constantly wet environments, and the use of harsh cleaning agents.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $2,463.99

Regular Price

USD

1,971

QTY

Shipping Details

Free No Rush Shipping

Weight:

26 lbs

Dimensions:

8 x 12 x 8 inches

HS Code:

8501.51.2020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/7
Output KW:	0.11
Output RPM@60hz:	353
Gear Ratio:	5:1
Torque Lb-in.@60hz:	22
Overhung Load (lb.):	130
Voltage AC:	460
Full Load Amp@60hz:	0.5
Frequency (Hz):	6-60

Documentation

Product Information Packet

Additional Information

BISON Inverter Duty Stainless Steel SantiMotor 3ph Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to constantly wet environments, and the use of harsh cleaning agents.

FEATURES:

30 foot power cable included
Gearing: Precision machined on automated CNC mills
Geartrain: Engineered to handle up to 200% shock-loading
Housing: 304 stainless steel
Lubrication: High performance grease for food processing
Shafts: 5/8" Keyed 304 Stainless Output Shaft
Mounting: All position
Motor Type: 460VAC, 3 phase Inverter Duty
- 6-60 Hz Constant Torque
- 60-90 Hz Constant Horsepower
Motor Bearings: Sealed ball bearings
Insulation: Class F (155ºC)
Enclosure: TENV
Global safety recognition: UL
Ambient temperature: 0º to 40ºC
Continuous duty
