Gearing Products

/

...Discontinued Gearing

/

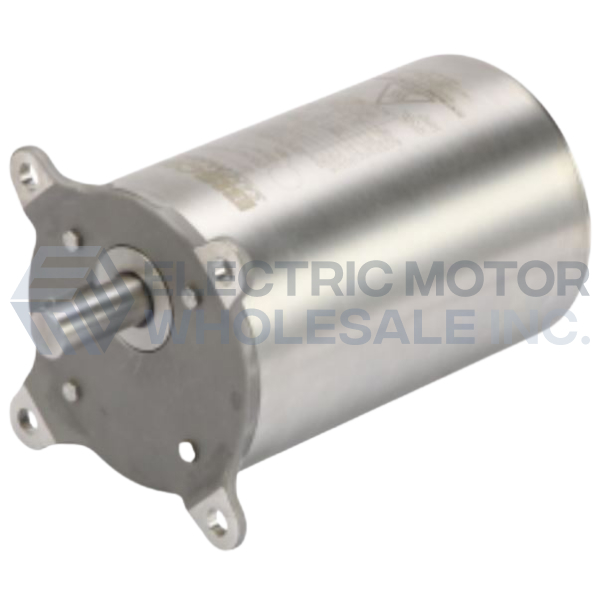

1/7HP BISON 12.4RPM TENV 460VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-260-2140

1/7HP BISON 12.4RPM TENV 460VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-260-2140


Part Number:

0172602140

Manufacturer:

Bison Gear Obsolete

Manufacturer Part Number:

017-260-2140
017-260-2140 BISON 1/7HP 0.8-19RPM Inverter Duty SaniMotor Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to temperature extremes, constantly wet environments, and the use of harsh cleaning agents.

Technical Details

Design:

Parallel Shaft

Input HP:

1/7

Output KW:

0.11

Output RPM@60hz:

12.4

Gear Ratio:

140:1

Torque Lb-in.@60hz:

500

Overhung Load (lb.):

240

Voltage AC:

460

Full Load Amp@60hz:

0.4

Frequency (Hz):

60

Product Information Packet

BISON Inverter Duty Stainless Steel SantiMotor 3ph Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to constantly wet environments, and the use of harsh cleaning agents.

FEATURES:

  • 30 foot power cable included
  • Gearing: Precision machined on automated CNC mills
  • Geartrain: Engineered to handle up to 200% shock-loading
  • Housing: 304 stainless steel
  • Lubrication: High performance grease for food processing
  • Shafts: 5/8" Keyed 304 Stainless Output Shaft
  • Mounting: All position
  • Motor Type: 460VAC, 3 phase Inverter Duty
    • 6-60 Hz Constant Torque
    • 60-90 Hz Constant Horsepower
  • Motor Bearings: Sealed ball bearings
  • Insulation: Class F (155ºC)
  • Enclosure: TENV
  • Global safety recognition: UL
  • Ambient temperature: 0º to 40ºC
  • Continuous duty
