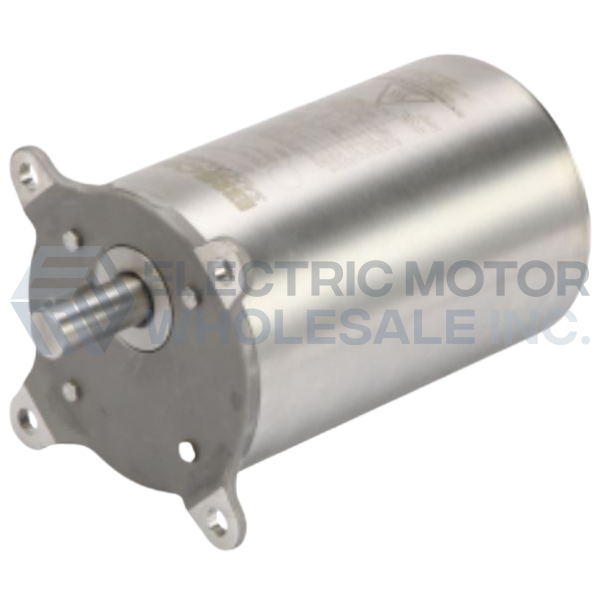

017-261-0019 BISON 1/8HP 91RPM Stainless SaniMotor Gearmotor 0172610019

1/8HP BISON 91RPM TENV 230VAC 3ph Stainless Parallel SaniMotor Gearmotor 017-261-0019

Part Number:

0172610019

Manufacturer:

Bison Gear

Manufacturer Part Number:

017-261-0019

017-261-0019 BISON 1/8HP 91RPM Inverter Duty SaniMotor Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to temperature extremes, constantly wet environments, and the use of harsh cleaning agents.

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/8
Output KW:	0.093
Output RPM@60hz:	91
Gear Ratio:	18.8:1
Torque Lb-in.@60hz:	70
Overhung Load (lb.):	200
Voltage AC:	230
Full Load Amp@60hz:	0.5
Frequency (Hz):	6-60

Documentation

Product Information Packet

Additional Information

BISON Inverter Duty Stainless Steel SantiMotor 3ph Parallel Gearmotor is designed to meet the IP69K extreme washdown rating for equipment exposed to constantly wet environments, and the use of harsh cleaning agents.

FEATURES:

Requires power cord (see related products)
Gearing: Precision machined on automated CNC mills
Geartrain: Engineered to handle up to 200% shock-loading
Housing: 304 stainless steel
Lubrication: High performance grease for food processing
Shafts: 5/8" Keyed 304 Stainless Output Shaft
Mounting: All position
Motor Type: 230VAC, 3 phase Inverter Duty
- 6-60 Hz Constant Torque
- 60-90 Hz Constant Horsepower
Motor Bearings: Sealed ball bearings
Insulation: Class F (155ºC)
Enclosure: TENV
Global safety recognition: UL
Ambient temperature: 0º to 40ºC
Continuous duty
Maximum cable length not to exceed 50ft
