016-246-4005 BISON 1/4HP 338RPM 1PH 115/230VAC Gearmotor 0162464005

Gear Motors

Gearmotors Single Phase

BISON GEAR AC Single Phase Gearmotors

BISON GEAR 246 SERIES AC 1PH Parallel Gearmotors

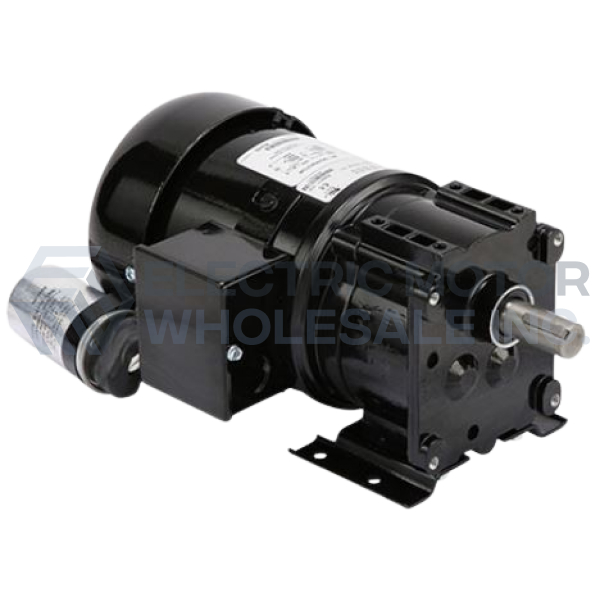

1/4HP BISON 338RPM TEFC 115/230VAC 1PH 246 SERIES PARALLEL GEARMOTOR 016-246-4005

Part Number:

0162464005

Manufacturer:

Bison Gear

Manufacturer Part Number:

016-246-4005

016-246-4005 BISON 1/4HP 338RPM 246 SERIES 1PH 115/230VAC Parallel Shaft Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $1,119.92

Regular Price

USD

895

QTY

Shipping Details

Free No Rush Shipping

Weight:

20 lbs

Dimensions:

12 x 17 x 12 inches

HS Code:

8501.40.4020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/4
Output KW:	0.19
Output RPM:	338
Gear Ratio:	5:1
Torque Lb-In:	41
Overhung Load (lb.):	170
Voltage:	115/230
Full Load Amperage:	2.35/1.25
Frequency (Hz):	60//50

Documentation

Product Information Packet

Additional Information

BISON 246 SERIES Single Phase 115/230VAC Parallel Shaft Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

FEATURES:

3/4" Keyed output shaft
Additional 0.31" rear output shaft
Gearing: Hardened steel, AGMA Class 9, 1st stage helical steel, balance spur metal
Housing: Precision machined die cast aluminum
Lubrication: Lifetime oil bath, sealed and gasketed
Bearings: Needle with thrust ball
Shafts: Hardened steel
Mounting: Face or optional footplate (any angle)
Motor Type: Permanent split capacitor
Rotation: Reversible
Insulation: Class B minimum
Finish: Gloss black powder coat
Enclosure: TEFC
Included junction box
