016-200-8012 BISON 1/15HP 141RPM 1PH 115/230VAC Gearmotor, Dayton 4Z523

Gear Motors

Gearmotors Single Phase

BISON GEAR AC Single Phase Gearmotors

BISON GEAR 200 SERIES AC 1PH Parallel Gearmotors

1/15HP BISON 141RPM TEFC 115/230VAC 200 SERIES PARALLEL GEARMOTOR 016-200-8012

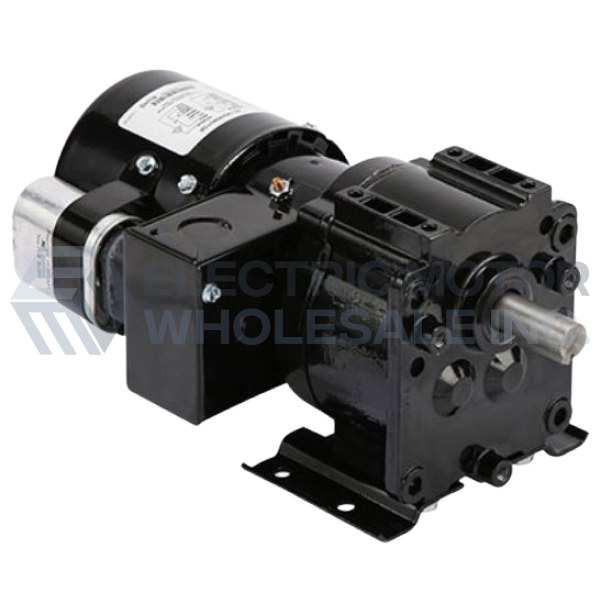

Picture is for reference only.

Part Number:

0162008012

Manufacturer:

Bison Gear

Manufacturer Part Number:

016-200-8012

016-200-8012 BISON 1/15HP 141RPM 200 SERIES 1PH Parallel Shaft 115/230VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Direct replacement for Dayton 4Z523

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $911.25

Regular Price

USD

729

QTY

Shipping Details

Free No Rush Shipping

Weight:

14 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.40.2020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/15
Output KW:	0.05
Output RPM:	141
Gear Ratio:	11.5:1
Torque Lb-In:	30
Overhung Load (lb.):	175
Voltage:	115/230
Full Load Amperage:	1.2/0.63
Frequency (Hz):	60/50

Documentation

Product Information Packet

Additional Information

BISON 200 SERIES Single Phase Parallel Shaft Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Direct replacement for Dayton 4Z523 FEATURES: 5/8" Keyed output shaft Additional 0.31" rear output shaft Gearing: Hardened steel, AGMA Class 9, 1st stage helical steel, balance spur metal Housing: Precision machined die cast aluminum Lubrication: Lifetime oil bath, sealed and gasketed Bearings: Needle with thrust ball Shafts: Hardened steel Mounting: Face or optional footplate (any angle) Motor Type: Permanent split capacitor Rotation: Reversible Insulation: Class B minimum Finish: Gloss black powder coat Enclosure: TEFC Included junction box
