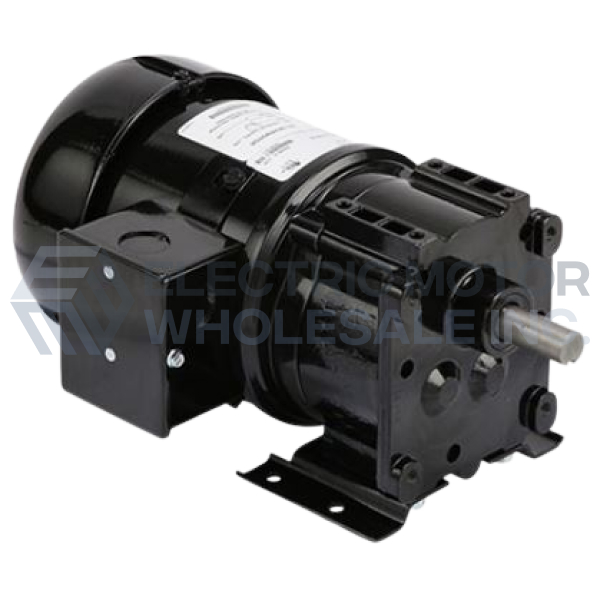

1/6HP BISON 13RPM TEFC 115VAC 1PH 242 SERIES PARALLEL GEARMOTOR 014-242-9133
1/6HP BISON 13RPM TEFC 115VAC 1PH 242 SERIES PARALLEL GEARMOTOR 014-242-9133
Product Overview
014-242-9133 BISON 1/6HP 13RPM 242 SERIES 1PH Parallel Shaft 115VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.Part Number:
0142429133Manufacturer:
Bison GearManufacturer Part Number:
014-242-9133Technical Details
Specifications
Design | Parallel Shaft |
Input HP | 1/6 |
Output KW | 0.12 |
Output RPM | 13 |
Gear Ratio | 133.3:1 |
Torque Lb-In | 277 |
Documentation
Additional Information
BISON 242 SERIES Single Phase Parallel Shaft 115V Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.
FEATURES:
- 5/8" Keyed output shaft
- Additional 0.31" rear output shaft
- Gearing: Hardened steel, AGMA Class 9, 1st stage helical steel, balance spur metal
- Housing: Precision machined die cast aluminum
- Lubrication: Lifetime oil bath, sealed and gasketed
- Bearings: Needle with thrust ball
- Shafts: Hardened steel
- Mounting: Face or optional footplate (any angle)
- Motor Type: Split phase
- Rotation: Reversible
- Insulation: Class B minimum
- Finish: Gloss black powder coat
- Enclosure: TEFC
- Included junction box
