Product Overview

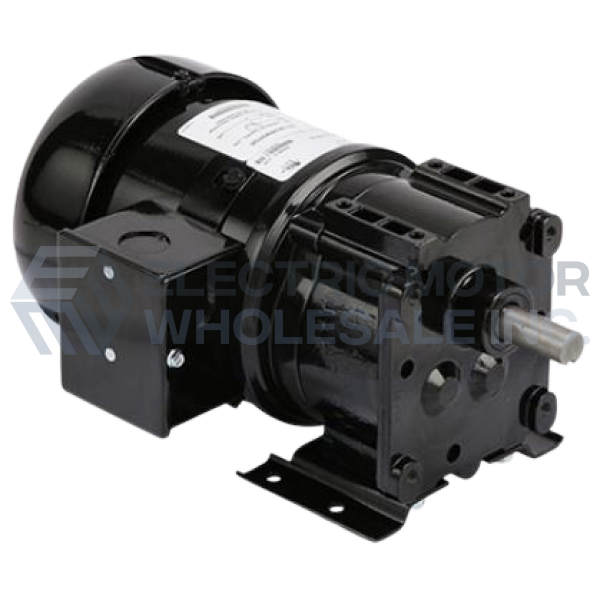

014-242-9058 BISON 1/6HP 31RPM 242 SERIES 1PH Parallel Shaft 115VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Substitute for Dayton 6K328 but not a direct replacement.

Part Number:

0142429058

Manufacturer:

Bison Gear

Manufacturer Part Number:

014-242-9058

Technical Details

Specifications

Design	Parallel Shaft
Input HP	1/6
Output KW	0.12
Output RPM	31
Gear Ratio	58.3:1
Torque Lb-In	278

Documentation

Product Information Packet

Additional Information

BISON 246 SERIES Single Phase Parallel Shaft 115V Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Substitute for Dayton 6K328 but not a direct replacement.

FEATURES:

5/8" Keyed output shaft
Additional 0.31" rear output shaft
Gearing: Hardened steel, AGMA Class 9, 1st stage helical steel, balance spur metal
Housing: Precision machined die cast aluminum
Lubrication: Lifetime oil bath, sealed and gasketed
Bearings: Needle with thrust ball
Shafts: Hardened steel
Mounting: Face or optional footplate (any angle)
Motor Type: Split phase
Rotation: Reversible
Insulation: Class B minimum
Finish: Gloss black powder coat
Enclosure: TEFC
Included junction box
