Product Overview

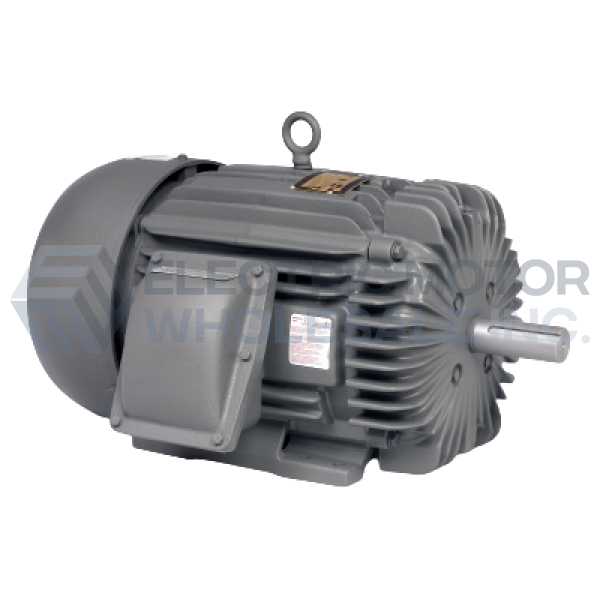

XM281562T BALDOR 15HP Explosion Proof Motor is ideal for hazardous location applications driving pumps, compressors, blowers, fans, and many other loads that require hazardous location protection.

Part Number:

XM281562T

Model/Spec Number:

10-0000-2030

Manufacturer:

ABB/Baldor

Technical Details

Specifications

Brand	Baldor
Application	Explosion Proof
Output HP	15//10
Output KW	11
Output RPM	1175//985
Frame Size NEMA	284T

Documentation

XM281562T-InfoPacket (1).pdf

Explosion-Proof-Definitions.pdf

Additional Information

Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere.

APPLICATIONS: Pumps, fans and conveyors with fixed and variable speed operation

FEATURES:

Auto thermal overload (<1 Hp), normally closed thermostats (≥1 Hp)
Threaded lead inlet
Low noise vibration dampening bases

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
