Product Overview

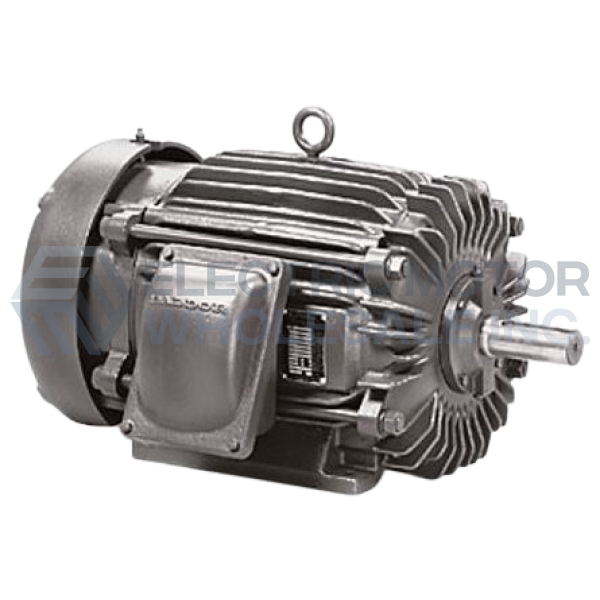

XM251542T BALDOR 15HP Explosion Proof Motor is ideal for hazardous location applications driving pumps, compressors, blowers, fans, and many other loads that require hazardous location protection.

Part Number:

XM251542T

Model/Spec Number:

09E270T597G3

Manufacturer:

ABB/Baldor

Technical Details

Specifications

Brand	Baldor
Application	Explosion Proof
Output HP	15//10
Output KW	11
Output RPM	1765//1470
Frame Size NEMA	254T

Documentation

XM251542T-InfoPacket (1).pdf

Explosion-Proof-Definitions.pdf

Additional Information

Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere.

APPLICATIONS: Pumps, fans and conveyors with fixed or variable speed operation

FEATURES:

Heavy Cast Iron Frame construction
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations
40°C ambient
normally closed thermostats
Threaded lead inlet
UL Certification markings
Low noise vibration dampening bases

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
