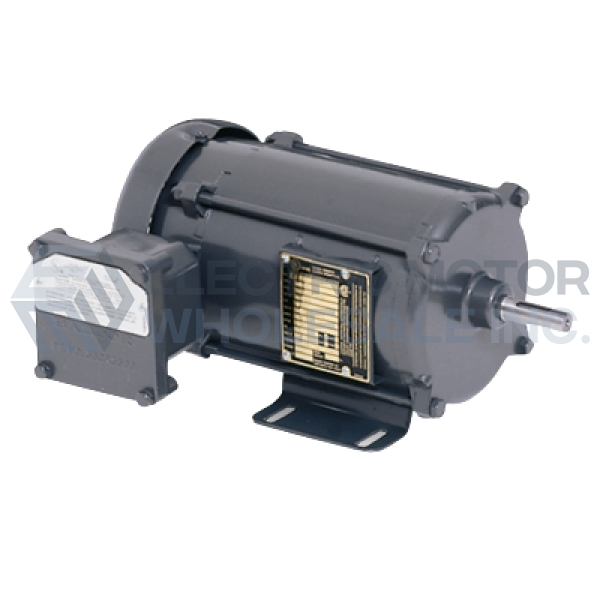

1.5HP BALDOR 3500RPM 143T XPFC 3PH EXPLOSION PROOF MOTOR XM141522T

Part Number:

XM141522T

Model/Spec Number:

35Q558M760G1

Manufacturer:

ABB/Baldor

XM141522T BALDOR 1.5HP Explosion Proof Motor is ideal for hazardous location applications driving pumps, compressors, blowers, fans, and many other loads that require hazardous location protection.

MSRP: $2,328.00

Regular Price

USD

1,673

QTY

Shipping Details

Free No Rush Shipping

Weight:

47 lbs

Dimensions:

11 x 27 x 14 inches

HS Code:

8501.52.8040

UPC:

781568901601

Technical Details

Specifications

Brand:	Baldor
Application:	Explosion Proof
Output HP:	1.5//1
Output KW:	1.1
Output RPM:	3500//2900
Frame Size NEMA:	143T
Mount NEMA:	With Base
Enclosure NEMA:	XPFC
Enclosure IEC:	IP54
Voltage:	230/460//190/380

Documentation

XM141522T-InfoPacket (1).pdf

Explosion-Proof-Definitions.pdf

Additional Information

Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere.

APPLICATIONS: Pumps, fans and conveyors with fixed and variable speed operation

FEATURES:

Auto thermal overload (<1 Hp), normally closed thermostats (≥1 Hp)
Threaded lead inlet
Low noise vibration dampening bases

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications.
