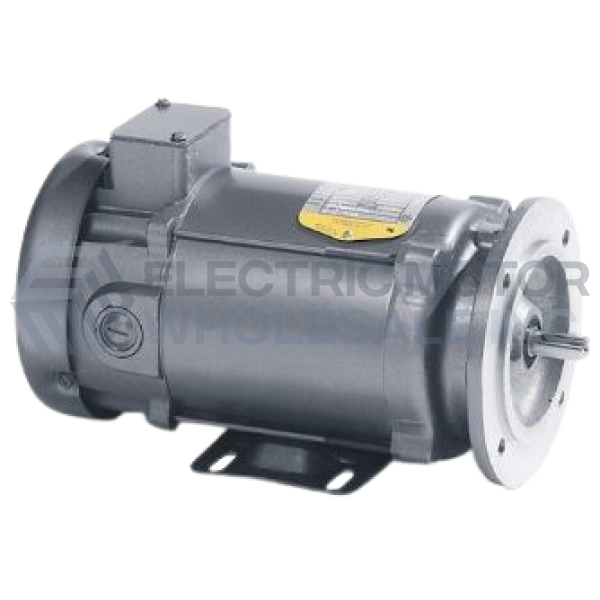

1.5HP BALDOR 3000RPM 90D TEFC 180VDC B5 PERMANENT MAGNET MOTOR VP3468D

1.5HP BALDOR 3000RPM 90D TEFC 180VDC B5 PERMANENT MAGNET MOTOR VP3468D


Part Number:

VP3468D

Model/Spec Number:

34-6484Z178

Manufacturer:

ABB/Baldor
VP3468D BALDOR 1.5HP 180VDC B5 Permanent Magnet Metric Motors include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.
MSRP: $1,884.00

Regular Price

USD

$

1,353

97

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

46 lbs

Dimensions:

14 x 22 x 15 inches

HS Code:

8501.32.2000

UPC:

781568154861

Technical Details

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

3000

Frame IEC:

D90D

Mount NEMA:

With Base

Mount IEC:

B5

Input Voltage DC:

180

Full Load Amps:

7.7

Winding:

Permanent Magnet

VP3468D-InfoPacket

BALDOR DC Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.

APPLICATIONS: include SCR Drive Motors for replacement on machinery requiring metirc mounting dimensions.

  • B5 Metric flange with B3 foot mounting
  • Bolt on non-metric base
  • Class F Insulation
  • Tach adaptable except type 15kW
  • 20:1 constant torque speed range
  • Conforms to IEC 60034-1
